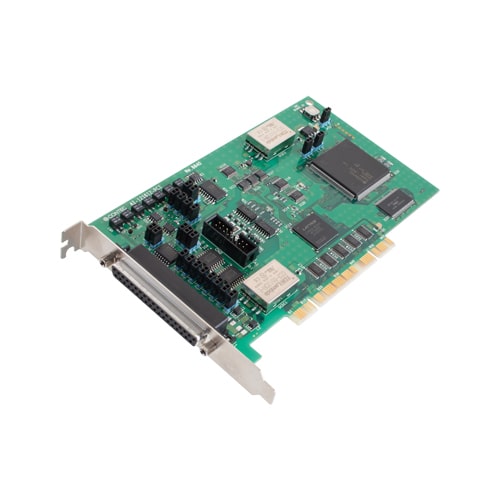

This product is PCI-compliant interface boards that convert analog input signals to digital equivalents (performing analog- to-digital conversion). This product can perform A-D conversion at a conversion speed of 20µsec per channel and a resolution of 12bit. Windows/Linux device driver is supported with this product.
| Series | |
|---|---|
| Bus Specification | PCI |
| Size | Short Size |
| Used Connector | D-SUB 37-pin (Female); Pin Header 16-pin (Male) |
| Input Channels | Single-ended 16-ch (Differential 8-ch) |
|---|---|
| Input Range | ±10V; ±5V; ±2.5V; ±1.25V; 0 to 10V; 0 to 5V; 0 to 2.5V; 0 to 1.25V; 4 to 20mA |
| ADC Resolution | 12-bit |
| Sampling Rate | 20μsec/ch (max.) |
| Input Buffer Memory | |
| Output Channels | – |
| Output Range | – |
| DAC Resolution | – |
| Update rate | – |
| Output Buffer Memory | – |
| Input Channels | 4-ch |
|---|---|
| Output Channels | 4-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 1msec (max.) |
| Response Time (Output) | 1msec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | Opto-isolated input (for sink current output) |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
