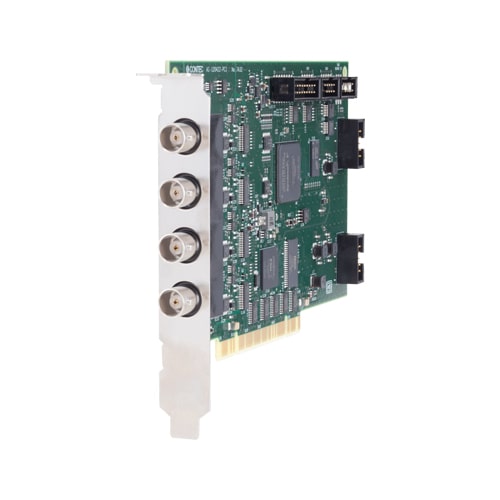

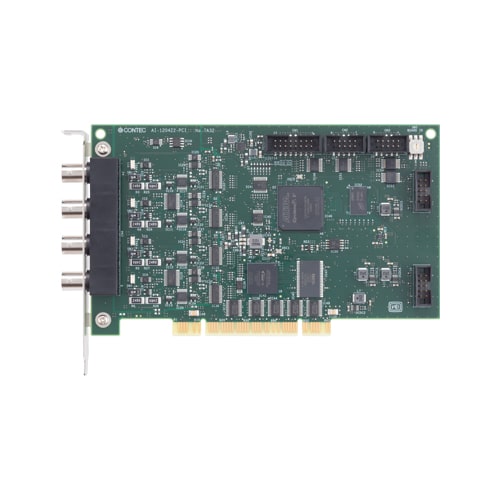

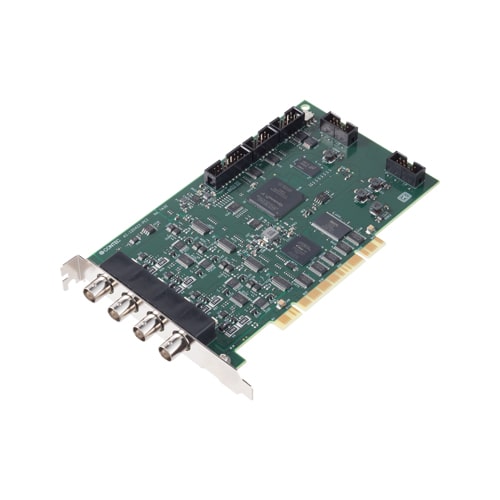

AI-1204Z2-PCI

Overview / Features

This product is a PCI bus-compliant interface board used to provide an analog signal input function on a PC.Maximum conversion speed is 10MSPS (100nsec), with simultaneous sampling of four channels at a same time. Large buffer memory capacity (256M data) and bus master transfer function allow continuous data acquisition to be performed at high speed for a long period. Sampling can be started and stopped by software, conversion data comparison (level comparison, in-range comparison, out-of-range comparison), external trigger, or event controller output. Uses a BNC connector that can connect directly to the signal source.Also features four digital input and output ports respectively (requires the optional DT-E3 cable).
Windows device driver is supported with this product.

• Maximum conversion speed is 10MSPS (100nsec), with simultaneous sampling of 4channels at a time
  • The maximum conversion speed is 10MSPS (100nsec) and four channels can be sampled simultaneously. The range for each channel can be set independently by software to match the level of the input signal source(Input range : ±10V, ±5V, ±2.5V, ±1.25V or 0 – +10V, 0 – +5V, 0 – +2.5V). Also features digital inputs and outputs (four LVTTL level input and output ports respectively and requires the optional DT-E3 cable).
• Sampling can be controlled by software, conversion data comparison, external trigger, event controller output, and similar start and stop conditions
  • Sampling can be setup to be started and stopped by software, conversion data comparison, external trigger, or event controller output. Control of sampling start and stop is completely independent and a separate setting is provided for each. It is also possible to specify that sampling stop after a specified number of samples. The conversion data comparison function can perform level, in-range, and out-of-range comparisons on the conversion data.
• Incorporates a synchronization control connector for synchronized operation
  • A synchronization control connector is provided for synchronized control of up to 16 boards. This means the number of channels can be increased simply by adding boards. It is also easy to synchronize operation with other CONTEC boards that have a synchronization control connector.
• Large buffer memory capacity and bus master transfer function allows continuous data acquisition at high speed for a long period
  • Large buffer memory capacity (256M data) and bus master transfer function allows continuous data acquisition to be performed at high speed for a long period. Furthermore, this function can transfer large volumes of data between the board and the PC.

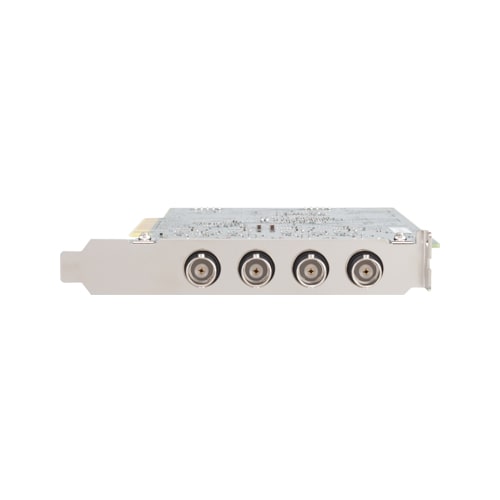

• BNC connector used for analog input pin
  • The BNC connector used for the analog input has a characteristic impedance of 50Ω and is of a type commonly used for high speed analog signals. This makes it easy to connect to other devices with a BNC connector.
• Windows compatible driver software is provided
  • Using the driver software API-AIO(WDM), which can be downloaded from the CONTEC website, makes it possible to create applications of Windows. In addition, a Diagnostic Program to confirm the hardware operations is included in the software as well.
