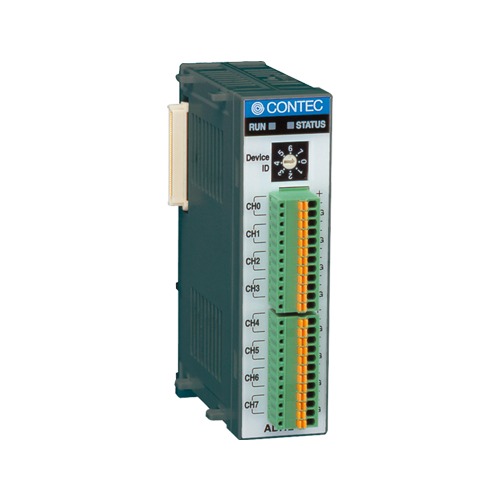

This product can change an external analog voltage signal into digitized data. It connects with the controller module of F&eIT series, and a system can be built, or it can connect with ADI12-8(USB) GY, and an input channel can be added. Moreover, since CPU which controls an external signal and a module is isolated with the digital isolator, it does not have electric influence of external on a host computer as it is.
| Series | F&eIT |
|---|---|
| Bus Specification | F&eIT stack bus |
| Size | F&eIT 1U |
| Used Connector | – |
| Input Channels | Differential 8-ch |
|---|---|
| Input Range | ±10V; ±5V; 0 to 10V; 0 to 5V |
| ADC Resolution | 12-bit |
| Sampling Rate | 10μsec/ch +20μsec (voltage) |
| Input Buffer Memory | 8 Word |
| Output Channels | – |
| Output Range | – |
| DAC Resolution | – |
| Update rate | – |
| Output Buffer Memory | – |
| Input Channels | – |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | – |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | – |
| Input Circuit | – |
| Output Circuit | – |
| Built-in Power Supply | – |
| Supported OS | – |
|---|
| Model | Definition |
|---|---|
| Analog Input Module for CONPROSYS nano Series I/O Module 8ch(12bit, 10μsec/ch) / Bus Isolation CPSN-AI-1208LI |
For details, please see datasheets and manuals. |
| Model | Description | Certification |
|---|---|---|
| ADI12-8(FIT)GY [Limited Stock] | [End of Repair Service : December 15, 2031] Analog Input F&eIT I/O Module / 8ch(12bit 33.3ks/s) / Bus Isolation |
|
| Item | Item Name |
|---|---|
| CPU-CA20(FIT)GY | F&eIT Remote I/O – Communication Coupler / 1x LAN |
| Item | Item Name |
|---|---|
| BX-320 | Box Computer BX-300 – Fanless Embedded PC / DIN Rail Mountable / F&eIT Bus / PCIe Bus / Atom E3845 (BayTrail SoC) / DC Power Supply |
| Item | Item Name |
|---|---|
| ATLF-8(FIT)GY | F&eIT series Low Path Filter Module for Analog Input Module |
| Item | Item Name |
|---|---|
| ESP-F5 | Extended warranty service package (5 years service course) (Japan only) |
| ESP-S1 | Extended warranty service package (Extension one year) (Japan only) |
