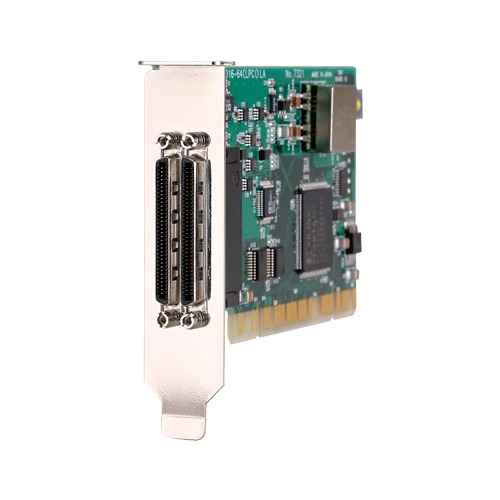

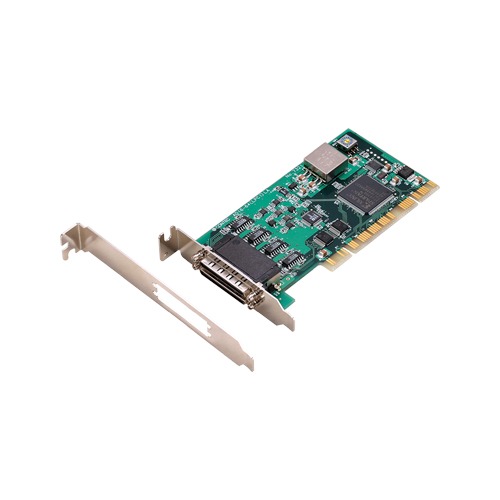

This product is a PCI bus compatible interface board with 64 highprecision, 16-bit analog input channels, digital input and output channels (4 channels each), and a 32-bit counter (1 channel) This product supports a Low Profile size slot and, if replaced with the supplied bracket, supports a standard size slot, too. The board can build a space-saving PC into a cost-effective analog input system. Using the bundled API function library package [API-PAC(W32)], you can create Windows application software for this board in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++.
| Series | Analog L(Low-cost&Multi-function) |
|---|---|
| Bus Specification | PCI |
| Size | Low Profile |
| Used Connector | 2x 0.8mm-pitch 68-pin (Female) |
| Input Channels | Single-ended 64-ch (Differential 32-ch) |
|---|---|
| Input Range | ±10V |
| ADC Resolution | 16-bit |
| Sampling Rate | 10μsec/ch (max.) |
| Input Buffer Memory | 1k Word |
| Output Channels | – |
| Output Range | – |
| DAC Resolution | – |
| Update rate | – |
| Output Buffer Memory | – |
| Input Channels | 4-ch |
|---|---|
| Output Channels | 4-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200nsec (max.) |
| Response Time (Output) | 200nsec (max.) |
| Operating Voltage (Input) | 5VDC-TTL |
| Operating Voltage (Output) | 5VDC-TTL |
| Input Circuit | Non-isolated TTL level input (Positive logic) |
| Output Circuit | Non-isolated TTL level output (Positive logic) |
| Built-in Power Supply | – |
| Number of Channels | 1-ch |
|---|---|
| Counting System | 32-bit Up count |
| Response speed | 10MHz |
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
| Model | Description | Certification |
|---|---|---|
| AD16-64(LPCI)LA | Analog Input Low Profile PCI Card / 64ch AI(16bit 100ks/s) / 1ch Counter – Multifunction DAQ L Series |
|
| Item | Item Name |
|---|---|
| API-AIO(LNX) | Analog I/O Driver for Linux |
| API-AIO(WDM) | Windows version High-efficiency Analog I/O Driver |
| API-TIMER(W32) | Timer Driver |
| API-TIMER(WDM) | Windows Driver for Timer Driver |
| IO-LIB(WDM) | Windows General-purpose I/O Driver |
| Item | Item Name |
|---|---|
| ACX-PAC(W32) | ActiveX components sets for measurement system development |
| ACX-PAC(W32) Express Edition | ActiveX Component for Measurement System |
| DAQ-DNC-FE | A collection of .NET components for DAQfast measurement system development. |
| DAQ-LV-WIN | LabVIEW Data Acquisition Library |
| ML-DAQ | MATLAB compliant Data Acquisition Library |
| VI-DAQ | VI Library of data acquisition for LabVIEW |
| Item | Item Name |
|---|---|
| C-LOGGER | Data Logger Software for Windows |
| Item | Item Name |
|---|---|
| ADC-68M/96F | Shield Cable for Analog I/O Card for CardBus |
| PCA68PS-P | 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable |
| PCB68PS-P | Both sides with connector shield cable for 68 pin 0.8mm pitch connectors |
| Item | Item Name |
|---|---|
| ATP-32F | BNC Connectors for Analog I/O Card |
| ATP-8 | BNC Connector Accessory for Analog I/O Card |
| DTP-64A | Screw Terminal (M3 x 96) |
| EPD-68A | Screw Terminal (M3 x 68) |
| EPD-96 | Screw Terminal (M3.5 x 96) |
| EPD-96A | Screw Terminal (M3 x 96) |
| Item | Item Name |
|---|---|
| ESP-F6 | Extended warranty service package (6 years service course) (Japan only) |
