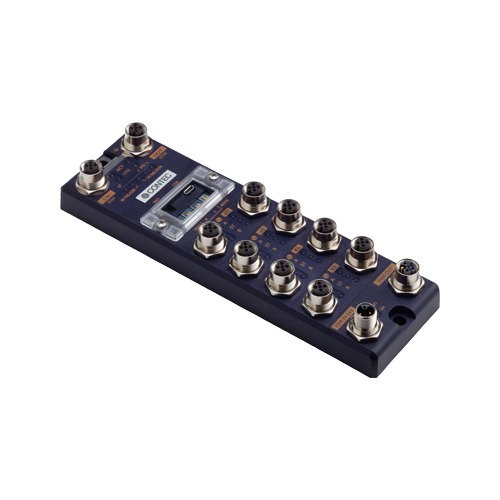

CPSL-08P1EN_img1CPSL-08P1EN_img1

CPSL-08P1EN

  • Multi-protocol support
  • 8 channels of independent IO-Link port
  • IP67 dust-proof and water-proof features
  • M12 power connector adopted
  • Output terminal for power supply
  • Easy settings through a web browser

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPSL-08P1EN Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an IO-Link ｍaster with 8 channels of IO-Link port (Class A). It supports industrial Ethernet protocols of differing makers and can connect to the net-work of PROFINET, EtherNet/IP, Modbus TCP, CC-Link IE Field Basic, EtherCAT, and OPC UA with the switches on the product. 8 channels of IO-Link port (Class A) allow parameters to be set independently, and IO-Link mode and SIO mode s can be set per port. As this product has a web server function, the user can install the functions through a Web browser without using a specific tool.

    • Multi-protocol support
      • This product supports industrial Ethernet protocols of differing makers, and can connect to the network of PROFINET, EtherNet/IP, Modbus TCP, CC-Link IE Field Basic, EtherCAT, and OPC UA with the switches on the product.
    • 8 channels of independent IO-Link port
      • 8 channels of IO-Link port (Class A) allow parameters to be set independently, and IO-Link mode and SIO mode can be set per port. In addition, digital input during IO-Link communication is achievable since No.2 pin of IO-Link port can be used as a digital terminal.
    • IP67 dust-proof and water-proof features
      • With its dust-proof and water-proof design to meet the IP67 rating, the product can be used in locations subject to water or dust particles. (*IP67 is the performance indication when the waterproof caps specified by the CONTEC are set to all connectors.)
    • M12 power connector adopted
      • As for a power connector, M12 power connector (L-coded) is adopted. It supplies a large amount of power with its compact size. This product also has a FG terminal (functional grounding) for a power connector.
    • Output terminal for power supply
      • The power input in the power input terminal is branched and it will be output from the power output terminal. Since it can be used as the power for other devices, you can connect them in the daisy-chain connection.
    • Easy settings through a web browser
      • Network settings and status check can be easily done through a web browser on the network from your PC.

    Specifications

    Specifications
    Coupler module
    Series CONPROSYS IO-Link Master
    Communication Protocol CC-Link IE Field Basic; EtherCAT; EtherNet/IP; Modbus TCP; OPC UA; PROFINET
    Stack bus –
    Number of Connecting Modules –
    Number of Ports 8x IO-Link (Class A M12)

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPSL-08P1EN CONPROSYS IO-Link Master – Multi-protocol / 8-channel / IP67
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Development Support Tools
    Item Item Name
    DAQ-LIBMB-LNX DAQfast Modbus Communication Library for Linux
    DAQ-LIBMB-WIN DAQfast Modbus Communication Library for Windows
    Cable
    Item Item Name
    PCL5P-3 Unshielded cable with a connector on one end for M12 (L-coded) connector
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
