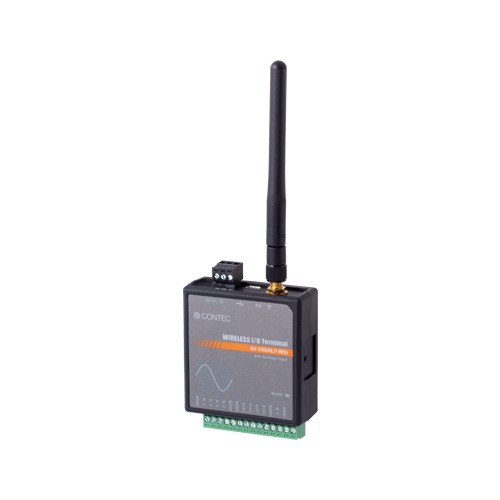

AI-1004LY-WQ_img1AI-1004LY-WQ_img1

AI-1004LY-WQ

Request Quote


    Email Verification Code (required)



    SKU: AI-1004LY-WQ Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    A 920MHz wireless I/O terminal, 10-bit Analog to Digital converter, Input range +/- 10V. (Japan Only)

      Specifications

      Specifications
      Add-on Module
      Series Wireless I/O
      Bus Specification Sub-1GHz band wireless
      Size Y Type
      Used Connector 1x Screw terminal block 14-pin
      Analog I/O
      Input Channels Single-ended 4-ch
      Input Range ±10V
      ADC Resolution 10-bit
      Sampling Rate –
      Input Buffer Memory –
      Output Channels –
      Output Range –
      DAC Resolution –
      Update rate –
      Output Buffer Memory –
      Digital I/O
      Input Channels –
      Output Channels –
      Bi-directional I/O Channels –
      Response Time (Input) –
      Response Time (Output) –
      Operating Voltage (Input) –
      Operating Voltage (Output) –
      Input Circuit –
      Output Circuit –
      Built-in Power Supply –
      Supported OS
      Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
      • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

      Ordering Informations

      Ordering Information
      Model Description Certification
      AI-1004LY-WQ Analog Input 920MHz Band Wireless I/O Unit / 4ch(10bit 100ks/s) (Japan Only)
      • VCCI
      • TELEC
      Options
      Device Drivers
      Item Item Name
      API-AIO(LNX) Analog I/O Driver for Linux
      API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
      Development Support Tools
      Item Item Name
      DAQ-LV-WIN LabVIEW Data Acquisition Library
      Power Supply / AC Adapter
      Item Item Name
      POA201-10-2 AC adaptor (12V,1A)
      Antenna
      Item Item Name
      CPS-ANT-R3-01 External 3G Antenna for CPS-MC341 series
      Other Accessories
      Item Item Name
      BRK-WQ-Y Bracket for Wireless I/O Terminal products
      CN6-Y14 14 pin Terminal connector(screw type) 6/set
      GW1-ETH-WQ 920MHz Wireless to Ethernet LAN Gateway (Japan Only)
