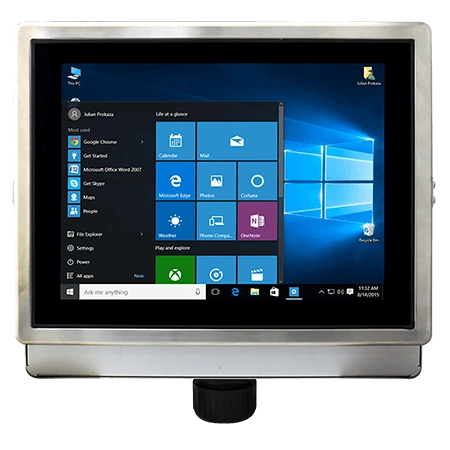

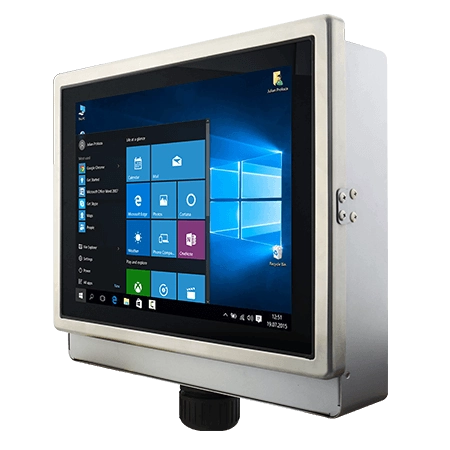

15-inch Stainless Steel Panel PC with ATEX Zone 2 certification
Panel mount stainless panel PC with a set of features designed to with stand industrial use in hazardous locations and extreme temperatures while providing high tech solutions that increase productivity, improve safety, and reduce operational costs.
The processing power comes from Intel’s Celeron N2930 processor paired with genuine Intel graphics for high performance. The panel PC features a flat panel with Projected Capacitive Touch Screen and offers 1024 x 768 pixel resolution.
Certified for use in Class 1, Division 2 & ATEX Zone 2 & IECEx Zone 2 locations R15IB3S-65EX device delivers processing power in rugged housing.
| Size | 15″ |
| Active Display Area | 304.1 (H) x 228.1 (V) |
| Pixel Pitch | 0.297 (H) x 0.297 (V) |
| Resolution | 1024 x 768 |
| Contrast Ratio | 700:1 (typ.) |
| Display Color | 16.2M (6 bits + FRC) |
| Brightness | 550 nit, optional 1000 nit |
| Viewing Angle | -80~80 (H); -70~70 (V) |
| Touch Screen | Projected Capacitive Touch Screen |
| Processor | Intel® Celeron® Processor N2930 2M Cache, 1.83 GHz |
| Chipset | Intel® SOC |
| Memory | 4GB DDR3L SO-DIMM 1333 MHz (up to 8GB) |
| BIOS | AMI BIOS |
| Watchdog Timer | 256 Levels |
| Storage | 64GB mSATA SSD (optional 32GB, 128GB, 256GB and 512GB) |
| OS | Windows 7 Pro for Embedded System 64bit Windows Embedded Standard 7 64bit Windows Embedded 8.1 Industry PRO 64 bit Windows 10 IOT Enterprise 64 bit |
| Other | Intel® HD graphics (built-in CPU) video controller |
| Serial | 1 x M12 Type RS232/RS422/RS485(Default RS232) |
| DC-Input | 1 x M21 Type DC power input connector |
| USB Port | 1 x M21 Type USB Type-A Receptacle |
| Ethernet | 1 x M12 Type RJ45 LAN |
| Operating Temperature | -20°C to +50°C |
| Operating Humidity | 10% to 95% RH, non-condensing |
| Cooling System | Fanless |
| Dimension (W x H x D) | 396 x 310 x 49 mm (w/o box cover) |
| IP Proof | Proof IP65 certified, dustproof and waterproof |
| Shock | MIL-STD-810F/G Method 516.6 |

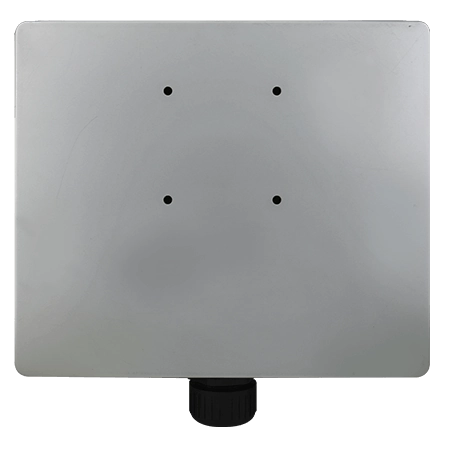

| Mouting | VESA 100 x 100 |
| Vibration | MIL-STD-810F/G Method 514.6 |
| Drop | MIL-STD-810F/G Method 516.6 |
| EMC | CE, FCC |
| Power Input | 9-36V DC with isolation protection |
| Power Adapter | 12V / 84W AC to DC Adapter |
| Power Consumption | 56W (typ.) |
| LED Indicator | Power, Storage |
| Buttons | Power, Reset |
| Certification |
|
Standard |
| 100~240V AC to DC Power Adapter with M12 Connector Power Cord M12 Type Power Cable M12 Type RS232 Male Cable M12 Type USB Female Cable M12 Type LAN Cable RJ45 female-female converter USB Adapter (USB type A to type B) VESA screws |
