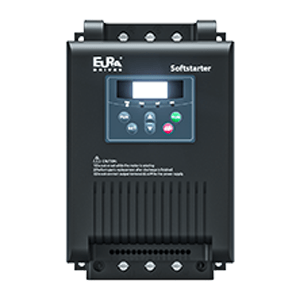

Soft starter 15 kW – 315 kW available in plastic or metal housing

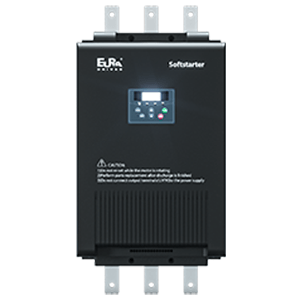

Soft starter 15 kW – 500 kW available with metal housing
| Model | HFR 1000/2000 |
|---|---|
| Input Power Supply – Rated voltage | AC 400V±20% |
| Input Power Supply – Input Frequency | 50/60Hz |
| Applicable Motor – Type | Standard asyncronus motor |
| Startup Mode | Voltage ramp startup (1~120s); Current limiting startup; Kick startup, Jogging startup (Only for HFR2000) |
| Stop mode | Free STOP, Voltage controlled STOP |
| Analog output | Current mode output 0(4)…..20 mA |
| Relay output | Bypass control relays (7A/230V), fault relays |
| Protection function | Out phase, over-load, over current over-heating |
| Protection level | IP20 |
| Cooling | Convection cooling (HFR1000) forced ventilation (HFR2000) |
| Installation mode | Cabinet mounting |
| Equipment Location | In an indoor location, Prevent exposure from direct sunlight, Free from dust, tangy caustic gases, flammable gases, steam or salt-containing etc. |
| Environment Temperature | -10°C~+45°C |
| Environment Humidity | Below 95% |
| Vibration Strength | Below 0.5g |
| Height | above sea level 1000m or below |
| Model | Applicable Motor (KW) | Rated Input Voltage(V) | Rated Input Current(A) | External Dimension (A*B*H) | Mounting Size (W*L) | Remarks |
|---|---|---|---|---|---|---|
| HFR1015 | 15 | ~380 three-phase | 30 | 250*153*162 | 219*140 | Plastic Hanging |
| HFR1022 | 22 | ~380 three-phase | 45 | 250*153*162 | 219*140 | Plastic Hanging |
| HFR1030 | 30 | ~380 three-phase | 60 | 250*153*162 | 219*140 | Plastic Hanging |
| HFR1037 | 37 | ~380 three-phase | 75 | 250*153*162 | 219*140 | Plastic Hanging |
| HFR1045 | 45 | ~380 three-phase | 90 | 250*153*162 | 219*140 | Plastic Hanging |
| HFR1055 | 55 | ~380 three-phase | 110 | 250*153*162 | 219*140 | Plastic Hanging |
| HFR1075 | 75 | ~380 three-phase | 150 | 510*260*194 | 389*232.5 | Plastic Hanging |
| HFR1090 | 90 | ~380 three-phase | 180 | 510*260*194 | 389*232.5 | Plastic Hanging |
| HFR1110 | 110 | ~380 three-phase | 220 | 510*260*194 | 389*232.5 | Plastic Hanging |
| HFR1132 | 132 | ~380 three-phase | 260 | 510*260*194 | 389*232.5 | Plastic Hanging |
| HFR1160 | 160 | ~380 three-phase | 320 | 510*260*194 | 389*232.5 | Plastic Hanging |
| HFR1220 | 220 | ~380 three-phase | 440 | 590*360*255 | 560*300 | Metal Hanging |
| HFR1250 | 250 | ~380 three-phase | 500 | 590*360*255 | 560*300 | Metal Hanging |
| HFR1280 | 280 | ~380 three-phase | 560 | 590*360*255 | 560*300 | Metal Hanging |
| HFR1315 | 315 | ~380 three-phase | 630 | 590*360*255 | 560*300 | Metal Hanging |
| Model | Applicable Motor (KW) | Rated Input Voltage(V) | Rated Input Current(A) | External Dimension (A*B*H) | Mounting Size (W*L) | Remarks |
|---|---|---|---|---|---|---|
| HFR2015 | 15 | ~380 three-phase | 30 | 370*200*220 | 150*350 | Metal Hanging |
| HFR2022 | 22 | ~380 three-phase | 45 | 370*200*220 | 150*350 | Metal Hanging |
| HFR2030 | 30 | ~380 three-phase | 60 | 370*200*220 | 150*350 | Metal Hanging |
| HFR2037 | 37 | ~380 three-phase | 75 | 370*200*220 | 150*350 | Metal Hanging |
| HFR2045 | 45 | ~380 three-phase | 90 | 370*200*220 | 150*350 | Metal Hanging |
| HFR2055 | 55 | ~380 three-phase | 110 | 370*200*220 | 150*350 | Metal Hanging |
| HFR2075 | 75 | ~380 three-phase | 150 | 487.5*254*276.5 | 200*424.5 | Metal Hanging |
| HFR2090 | 90 | ~380 three-phase | 180 | 487.5*254*276.5 | 200*424.5 | Metal Hanging |
| HFR2110 | 110 | ~380 three-phase | 220 | 487.5*254*276.5 | 200*424.5 | Metal Hanging |
| HFR2132 | 132 | ~380 three-phase | 260 | 487.5*254*276.5 | 200*424.5 | Metal Hanging |
| HFR2160 | 160 | ~380 three-phase | 320 | 487.5*254*276.5 | 200*424.5 | Metal Hanging |
| HFR2200 | 200 | ~380 three-phase | 400 | 555*364.5*351.5 | 322*475 | Metal Hanging |
| HFR2220 | 220 | ~380 three-phase | 440 | 555*364.5*351.5 | 322*475 | Metal Hanging |
| HFR2250 | 250 | ~380 three-phase | 400 | 555*364.5*351.5 | 322*475 | Metal Hanging |
| HFR2280 | 280 | ~380 three-phase | 560 | 555*364.5*351.5 | 322*475 | Metal Hanging |
| HFR2315 | 315 | ~380 three-phase | 630 | 555*364.5*351.5 | 322*475 | Metal Hanging |
| HFR2355 | 355 | ~380 three-phase | 700 | 660*475.5*317.5 | 402*607.5 | Metal Hanging |
| HFR2400 | 400 | ~380 three-phase | 800 | 660*475.5*317.5 | 402*607.5 | Metal Hanging |
| HFR2450 | 450 | ~380 three-phase | 900 | 660*475.5*317.5 | 402*607.5 | Metal Hanging |
| HFR2500 | 500 | ~380 three-phase | 1000 | 660*475.5*317.5 | 402*607.5 | Metal Hanging |
