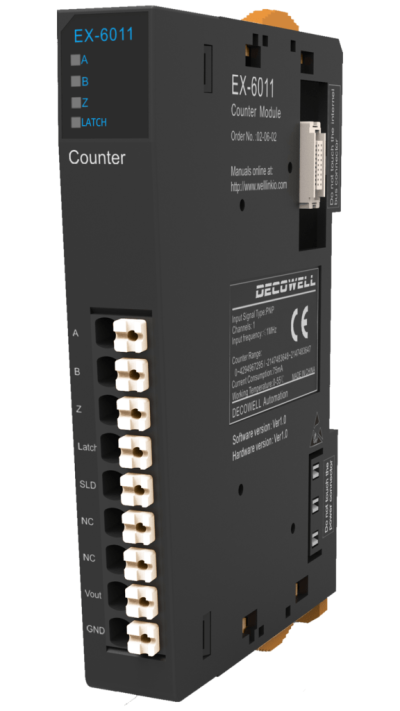

| Product name | EX-6011 | EX-6021 | EX-6031 |
|---|---|---|---|
| Current Consumption | 38mA | 75mA | 20mA |
| System power supply voltage | 5Vdc (±10%) | 5Vdc (±10%) | 1 channel SSI interface port encoder |
| I/O power supply input voltage | 24Vdc (±20%) | 24Vdc (±20%) | ≤2MHz (Can be set to 2 MHz or less (125 KHZ, 250 KHZ, 500 KHZ, 1 MHz and 1.5 MHz, 2 MHz)) |
| Input Signal Type | Single-ended (PNP) | Differential | Within 400m (depending on set communication frequency and encoder characteristics) |
| Counting mode | Linear counter form, Ring counter form | Linear counter form, Ring counter form | Can be set to 1-65535 (unit 100us) |
| Counting range | 0 / 4294967295 or 2147483648 / 2147483648 | 0 / 4294967295 or 2147483648 / 2147483648 | Differential signal, 5Vdc |
| Count function selection | Count disable, Latch counter, Sample counter, Cycle pulse counter Frequency, Rotation speed, Period measurement 4294967295 | Count disable, Latch counter, Sample counter, Cycle pulse counter Frequency, Rotation speed, Period measurement 4294967295 | 10-32 bits (configurable) |
| Orthogonal encoder magnification | X1, X2, X4 | X1, X2, X4 | Supports gray code conversion to binary |
| Power supply input | 5Vdc (±10%)/150mA; 24Vdc (±10%)/400mA | 5Vdc (±10%)/150mA; 24Vdc (±10%)/400mA | Configurable |
| Maximum input frequency | 1MHz | 1MHz | Normal DI function and pulse capture function |
| Maximum connection distance of a signal cable | 10M / 2M | 10M / 2M | Rising edge capture, falling edge capture, bilateral edge capture |
| Working temperature (°C) | 0 / +55 | 0 / +55 | 0 / +55 |
| Dimensions | 90 x 67 x 14 | 90 x 67 x 14 | 90 x 67 x 14 |
| Storage Temperature (°C) | -20 / +85 | -20 / +85 | -20 / +85 |
| Relative humidity | 95% No Condensation | 95% No Condensation | 95% No Condensation |
| Protection grade | IP20 | IP20 | IP20 |

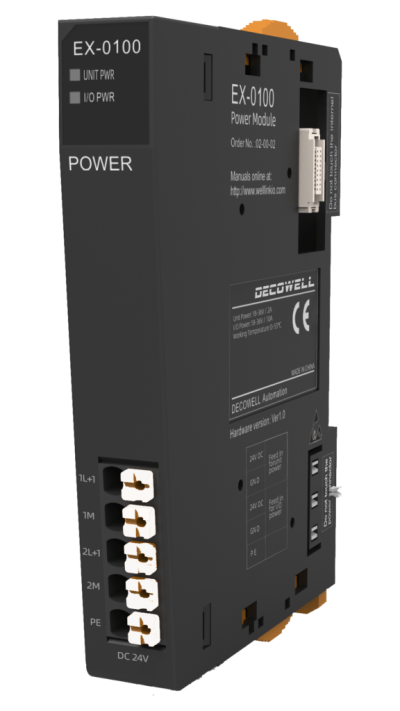

| Product name | EX-0100 |
|---|---|
| System power supply voltage | 24Vdc (18 / 36Vdc) |
| Output system voltage | 5V±5% |
| Output system current | 2A max |
| I/O port power supply voltage | 24Vdc (18 / 36Vdc) |
| I/O port output current | 10A max |
| Dimensions (mm) | 90 x 67 x 14 |
| Working temperature (°C) | 0 / +55 |
| Storage Temperature (°C) | -20 / +85 |
| Relative humidity | 95% No Condensation |
| Protection grade | IP20 |
