Entry level HMI equipped with Dual Core CPU.
Entry level HMI equipped with Dual Core CPU.
Entry level HMI equipped with Dual Core CPU.
| Model | PI3035ie | PI3043ieS-N |
|---|---|---|
| CPU Type | Cortex A35 1.2GHz | Cortex A35 1.2GHz |
| Display Size | 3.5″ | 4.3″ |
| Display Resolution / Color | 320 x 240 16M colors | 480 x 272 16M colors |
| Display Brightness (cd/m2) | 300 | 300 |
| Display Backlight and Lifetime | LED 50.000 hours | LED 50.000 hours |
| Touchscreen Technology | Four-wire resistive | Four-wire resistive |
| RAM (MB) | 64 | 64 |
| Flash (MB) | 128 | 128 |
| USB | Micro USB | Micro USB |
| Calendar and Real-time clock | YES | YES |
| Serial Port | Type 1: CN1:RS422/RS485 CN2: RS232 |
Type 1: COM1(RS232), COM1(RS485), COM1(RS485) Type 2: COM1(RS232), COM 1 (RS422), COM 1 (RS485) |
| Ethernet | N.A. | 1 x 10/100 Mbps |
| Power Consumption (W) | < 5 | < 5 |
| Power Supply (Vdc) | 12 ~ 28 | 12 ~ 28 |
| Case Material | PC + ABS | PC + ABS |
| External Dimension (WxHxD) (mm) | 96.0 x 81.0 x 33.0 | 142.0 x 86.0 x 30.3 |
| Cut-out Size (WxH) (mm) | 91.0 x 73.0 | 131.0 x 78.0 |
| Mounting Method | Panel Mount | Panel Mount |
| Weight (Kg) | 0.14 | 0.19 |
| Operating Temperature (°C) | -10 + 60 | -10 + 60 |
| Storage Temperature (°C) | -20 + 70 | -20 + 70 |
| Humidity | 10 ~ 90％ RH (Non-condensing) | 10 ~ 90％ RH (Non-condensing) |
| Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) |
| Programming Software | PIStudio | PIStudio |
| IP rate | IP65 | IP65 |
| CE | YES | YES |

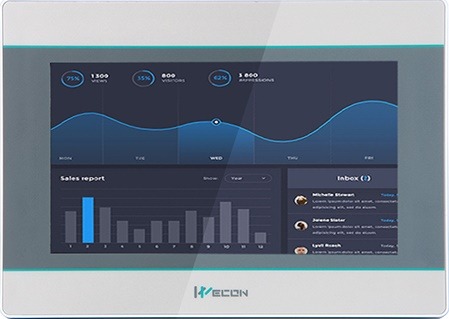

| Model | PI3070ig-O | PI3102ig-O |
|---|---|---|
| CPU Type | Cortex A35 1.2GHz | Cortex A35 1.2GHz |
| Display Size | 7″ | 10.2″ |
| Display Resolution / Color | 800 x 480 16M colors | 1024 x 600 16M colors |
| Display Brightness (cd/m2) | 250 | 350 |
| Display Backlight and Lifetime | LED 50.000 hours | LED 50.000 hours |
| Touchscreen Technology | Four-wire resistive | Four-wire resistive |
| RAM (MB) | 128 | 128 |
| Flash (MB) | 128 | 128 |
| USB | USB2.0 Host + USB2.0 Client | USB2.0 Host + USB2.0 Client |
| Calendar and Real-time clock | YES | YES |
| Serial Port COM1 | Type 1: COM1(RS232). COM1(RS485), COM1(RS485) Type 2: COM1 (RS232), COM1 (RS422), COM1 (RS485) |
Type 1: COM1(RS232). COM1(RS485), COM1(RS485) Type 2: COM1 (RS232), COM1 (RS422), COM1 (RS485) |
| Ethernet | 1 x 10/100 Mbps | 1 x 10/100 Mbps |
| Wi-Fi | N.A. | N.A. |
| 4G LTE | N.A. | N.A. |
| Power Consumption (W) | < 8 | < 10 |
| Power Supply (Vdc) | 12 ~ 28 | 12 ~ 28 |
| Case Material | PC+ABS | PC+ABS |
| External Dimension (WxHxD) (mm) | 201.2 x 147.2 x 39.0 | 272.0 x 191.0 x 41.5 |
| Cut-out Size (WxH)(mm) | 192.0 x 138.0 | 260.0 x 179.0 |
| Mounting Method | Panel Mount | Panel Mount |
| Weight (Kg) | 0.52 | 1.02 |
| Operating Temperature (°C) | -10 + 60 | -10 + 60 |
| Storage Temperature (°C) | -30 + 70 | -30 + 70 |
| Humidity | 10 ~ 90％ RH (Non-condensing) | 10 ~ 90％ RH (Non-condensing) |
| Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) |
| Programming Software | PIStudio | PIStudio |
| Real-time Monitoring Points | N.A. | N.A. |
| Alarm Monitoring Points | N.A. | N.A. |
| History Monitoring Points | N.A. | N.A. |
| History Storage | N.A. | N.A. |
| VPN | N.A. | N.A. |
| IP rate | IP65 | IP65 |
| CE | YES | YES |
| Model | PI8070ig-N | PI8101ig-N | PI8150ig-C (NWG) |
|---|---|---|---|
| CPU Type | Cortex A35 1.2GHz | Cortex A35 1.2GHz | Cortex A35 1.2GHz |
| Display Size | 7″ | 10.2″ | 15″ |
| Display Resolution / Color | 800 x 480 16M colors | 1024 x 600 16M colors | 1920 x 1080 262M colors |
| Display Brightness (cd/m2) | 250 | 350 | 220 |
| Display Backlight and Lifetime | LED 50.000 hours | LED 50.000 hours | LED 50.000 hours |
| Touchscreen Technology | Four-wire resistive | Four-wire resistive | Four-wire resistive |
| RAM (GB) | 4 | 4 | 4 |
| Flash (MB) | 512 | 512 | 512 |
| USB | USB2.0 Host + USB2.0 Client | USB2.0 Host + USB2.0 Client | USB2.0 Host + USB2.0 Client |
| Calendar and Real-time clock | YES | YES | YES |
| Serial Port COM1 | Type 1: COM1(RS232). COM1(RS485), COM1(RS485) Type 2: COM1 (RS232), COM1 (RS422), COM1 (RS485) |
Type 1: COM1(RS232). COM1(RS485), COM1(RS485) Type 2: COM1 (RS232), COM1 (RS422), COM1 (RS485) |
Type 1: COM1(RS232). COM1(RS485), COM1(RS485) Type 2: COM1 (RS232), COM1 (RS422), COM1 (RS485) |
| Ethernet | 2 x 10/100 Mbps | 2 x 10/100 Mbps | 2 x 10/100 Mbps |
| OPC UA | Client and Server | Client and Server | Client and Server |
| Wi-Fi | N.A. | N.A. | YES |
| 4G LTE | N.A. | N.A. | YES |
| Power Consumption (W) | < 8 | < 10 | < 15 |
| Power Supply (Vdc) | 12 ~ 28 | 12 ~ 28 | 12 ~ 28 |
| Case Material | PC+ABS | PC+ABS | Aluminium + Metal |
| External Dimension (WxHxD) (mm) | 201.2 x 147.2 x 39.0 | 272.0 x 215.0 x 41.5 | 403.0 x 253.0 x 35.2 |
| Cut-out Size (WxH)(mm) | 192.0 x 138.0 | 260.0 x 200.0 | 394.0 x 244.0 |
| Mounting Method | Panel Mount | Panel Mount | Panel Mount |
| Weight (Kg) | 0.52 | 1.02 | 2.46 |
| Operating Temperature (°C) | -10 + 60 | -10 + 60 | -10 + 60 |
| Storage Temperature (°C) | -30 + 70 | -30 + 70 | -30 + 70 |
| Humidity | 10 ~ 90％ RH (Non-condensing) | 10 ~ 90％ RH (Non-condensing) | 10 ~ 90％ RH (Non-condensing) |
| Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) |
| Programming Software | PIStudio | PIStudio | PIStudio |
| Real-time Monitoring Points | 300 | 300 | 300 |
| Alarm Monitoring Points | 200 | 200 | 200 |
| History Monitoring Points | 100 | 100 | 100 |
| History Storage | 120 days / 1 millions | 120 days / 1 millions | 120 days / 1 millions |
| VPN | YES | YES | YES |
| IP rate | IP65 | IP65 | IP65 |
| CE | YES | YES | YES |
| CODE | DESCRIPTION |
|---|---|
| PI3035ie | HMI 3,5”, Resolution 320×240, RAM 64MB, Flash 128MB, Cortex A35, RS232/RS422/RS485 |
| PI3043ieS-N | HMI 4,3″, Resolution 480×272, RAM 64MB, Flash 128MB, Cortex A35, Ethernet, RS232/RS422/RS485 |
| CODE | DESCRIPTION |
|---|---|
| PI3070ig-O | HMI 7″, Resolution 800×480, RAM 128MB, Flash 128MB, Cortex A35, Ethernet, RS232/RS422/485 |
| PI3102ig-O | HMI 10,2″, Resolution 1024×600, RAM 128B, Flash 128MB, Cortex A35, Ethernet, RS232/RS422/485 |
| CODE | DESCRIPTION |
|---|---|
| PI8070ig(N) | HMI 7”, Resolution 800×480, RAM 512MB, Flash 4GB, Cortex A35, 2 x Ethernet, RS232/RS422/485, Cloud Data, V-NET, OPC UA Client, OPC UA Server. |
| PI8101ig(N) | HMI 10”, Resolution 1024×600, RAM 512MB, Flash 4GB, Cortex A35, 2 x Ethernet, RS232/RS422/485, Cloud Data, V-NET, OPC UA Client, OPC UA Server. |
| PI8150ig(NWG) | HMI 15″, Resolution Full HD 1920×1080, RAM 512MB, Flash 4GB, Cortex A35, 2 x Ethernet, RS232/RS422/485, 4G, Wi-Fi, V-NET, OPC UA Client, OPC UA Server. |
