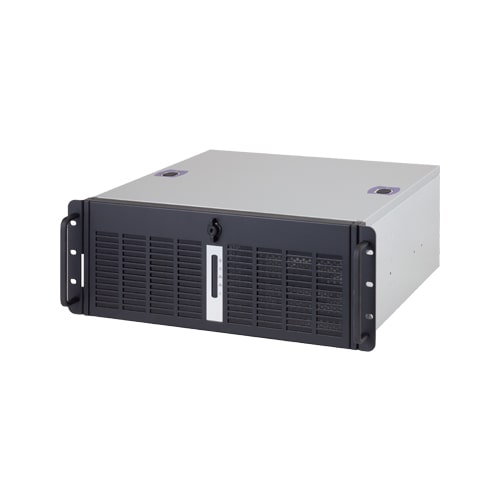

This product is a 19-inch rack-mount industrial-use PC that supports the 10th (Comet Lake-S) of Intel® Core ™ series and contains the Q470 chipset. In addition to a wide range of interfaces, it is also equipped with expansion slots for PCI bus and PCI Express bus. The product adopts a highly reliable Japan-made power supply (mfd. by Nipron). Solution-ePC is an industrial-use computer that offers BTO (Build to Order) specifications to suit the requests of customers. Only carefully selected components offering high reliability and stable supply are used, making the product suitable for industrial use. Various selections are available to meet customer requests, including OS, CPU, memory, and storage options.
| Mounting | Rack Mount |
|---|
| Supported OS | Windows 11 IoT Enterprise LTSC 2024; Windows 10 IoT Enterprise 2021 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 10th Gen. (Comet Lake-S) |
|---|---|
| Processor | Core i9-10900E; Core i7-10700E; Core i5-10500E; Celeron G5900E |
| CPU socket | LGA1200 |
| Memory | up to 64GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage) |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |
| Video | 1x DVI-I |
|---|---|
| LAN | 1x 2500BASE-T; 1x 1000BASE-T/100BASE-TX/10BASE-T |
| Wireless | – |
| Audio | – |
| I/O | 4x USB3.2 Gen1 (USB3.0); 2x RS-232C |
| Memory card | – |
| Expansion bus | 1x PCI Express(x16); 1x PCI Express(x8); 9x PCI |
|---|---|
| Drive bay | 2x 5-inch bay (SATA); 3x 3.5-inch shadow bay (SATA) |
| Input voltage | 90 to 264VAC |
|---|
| Operating temperature | 5 to 40°C (41 to 104°F) |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CE; FCC Class A; UKCA; VCCI Class A |
| Bus Type | Usable Card Dimension | |
|---|---|---|
| Slot 1 to 3 | PICMG 1.3 | － (unusable) |
| Slot 4 | PCI Express(x16) x8 signal | 312.0(L) x 111.15(H) [mm] |
| Slot 5 | PCI Express(x8) x8 signal | 312.0(L) x 111.15(H) [mm] |
| Slot 6 to 14 | PCI | 313.8(L) x 107(H) [mm] |
| Model | Description | Certification |
|---|---|---|
| SR4100 | Solution-ePC – Rackmount PC / Intel 10th Gen. Core (Comet Lake) / 1x PCIe(x16) / 1x PCIe(x8) / 9x PCI / AC Power Supply |
|
This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.
| Power supply |
|
|---|---|
| CPU |
|
| Memory |
|
| Storage 1 (3.5” Shadow bay) |
|
Storage 2 (3.5” Shadow bay) |
|
| Optics system drive |
|
| RAID |
|
| OS |
|
| Expansion COM ports |
|
| Other Options |
|
*1 Use a 5-inch bay when selecting removable storage.
