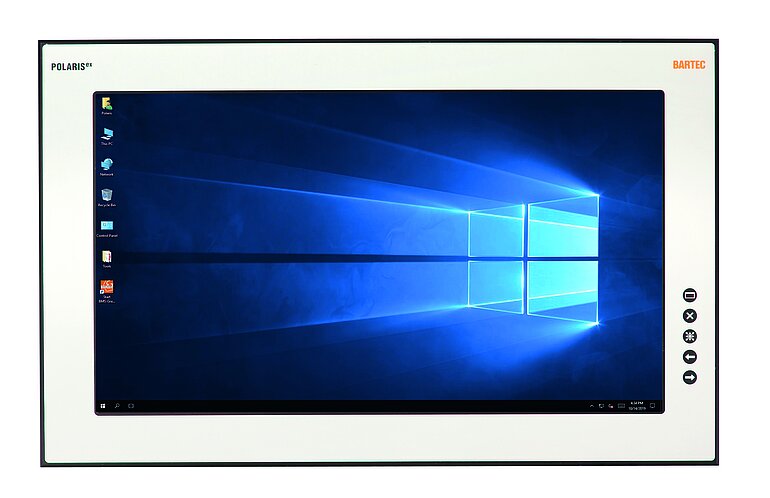

csm_Polaris_Pro_24_2e202d4dc2csm_Polaris_Pro_24_2e202d4dc2

POLARIS Remote 24″

for Zone 1/21
17-71V2-.0..
  • Easy front panel fitting
  • Full HD resolution
  • Easy wiring
  • Connection of standard PCs in non-hazardous areas
  • Optional touchscreen
  • Transmission through fibre optical
Request Quote


    Email Verification Code (required)



    Category:
    Description
    Technical Data
    Declarations
    Data Sheets
    Brochures

    The POLARIS Remote 24″ W unit by BARTEC is a display which a PC can be operated in safe areas of hazardous areas. Distances of up to 20 km are possible. POLARIS Remote 24″ W offers the user the possibility of using any currently available PC-based process control system, without any restrictions in the Ex area. The front panel installation assures ease of mounting. On request, the devices are also available as turn-key system solutions in a Stainless-steel enclosure as wall and floor mounting versions. The screen of the Remote 24″ W is a TFT display with an Full HD resolution and is characterised by its excellent brilliance and a very large reading angle. Intrinsically safe input devices can also be connected. The optional touchcreen (intrinsically safe) offers the ultimate in operating comfort. Connection in the safe area is realised via a local unit (included in scope of delivery).

    Marking

    ATEX:Ex II 2G Ex db eb q [ib] IIC T4 GbEx II 2D Ex tb IIIC T120 °C Db

    IECEx:Ex db eb q [ib] IIC T4 GbEx tb IIIC T120 °C Db

    Ambient Temperature

    Operation: 0 °C ≤ Ta ≤ +50 °C(32 °F ≤ Ta ≤ +122 °F )

    Certification

    Technical Data

    Protection class IP 65 (front)
    IP 54 (back)
    Structure Front-panel fitting
    Dimensions 644 mm x 406 mm x approx. 135 mm
    Wall cut-out 630 mm x 392 mm + 0.5 mm
    Material Front: polyester foil on anodised aluminium plate (conditionally UV-resistant)
    Back: bichromated
    sheet steel
    Cable length up to 100 m via STP copper cable DVI/USB
    up to 20 km via optical fibers Single Mode (9/125 μm)
    DVI/USB
    Storage temperature -20 °C to +50 °C
    Humidity 5 to 95 % non-condensing
    Vibration 0.7 g/1 mm; 5 Hz to 500 Hz pulse in all 3 axes
    Shock resistance 15 g/11 ms pulse in all 3 axes

    Declarations

      EU-Declaration of Conformity 11-71V0-7C0001
      UK-Declaration of Conformity 11-71V0-7CU001

    Data Sheets

      Data Sheet – POLARIS Remote 24″

    Brochures
