PPPP15.1PPPP15.1

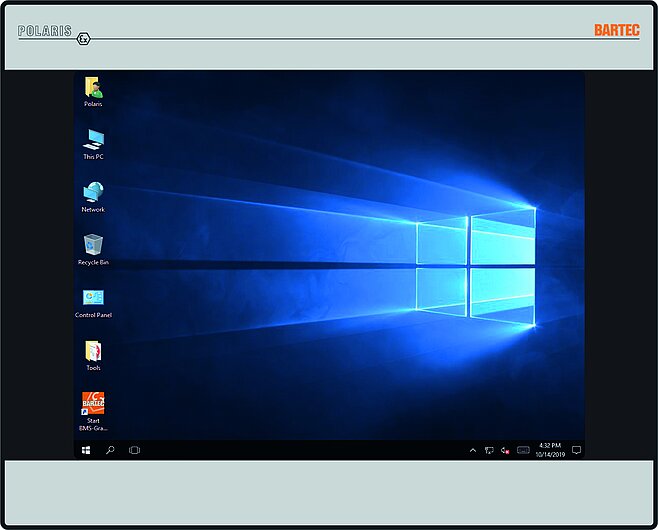

POLARIS PROFESSIONAL Panel PC 15″

For Zone 1 and 21

  • Ethernet interface
  • Easy front panel fitting
  • Intrinsically safe USB interface
  • Graphics-capable TFT colour display
  • Direct linkage in explosive areas
  • Optional touch screen
  • Optional WLAN
  • Siemens PROFIBUS-DP/MPI interface
Description
Additional information
ExProduct picture

17-71V1-.0../.000

Certification

German English IBExU05ATEX1117 X
English IECEx IBE 11.0007X
American Canadian CSA 70010166
Russian TC RU C-DE-BH02.B.00586
Chinese NEPSI GYJ18.1382X
Ukrainian No. 915
Portuguese UL-BR 11.0131X
Korean KCS KTL 14-KB4BO-0258X

Marking

ATEX:
Ex II 2G Ex db eb q [ib] IIC T4 Gb
Ex II 2D Ex tb IIIC T120 °C Db
IECEx:
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db

Ambient temperature

0 °C up to +50 °C
System solution with heating on request


Description

The panel PC has been equipped as standard with the Dual Core Processor AMD T40E/2 x 1.0 GHz; 4 GB RAM. The Ethernet interface can be used to connect individual computers or network devices, e. g. a printer, to an existing local network (LAN) (WLAN is also a possible option) or local networks can be set up completely wirelessly. This facilitates a high-performance visualisation and operation of the processes directly on site. The wired electrical connections are realised via a terminal compartment of the “e” type of protection (increased safety). The state-of-the-art display technology guarantees an optimum contrast, even with large viewing angle. The Front-panel fitting assures easy installation. On request, the devices are also available as ready-made system solutions in Stainless-steel enclosure for wall or floor mounting. An intrinsically safe USB interface is available for a USB Ex i memory stick. Intrinsically safe input devices can also be connected. The optional (intrinsically safe) touchscreen offers the optimum in operating comfort. Windows 7® Ultimate or Windows 7® Embedded MUI can be used as an operating system. The Panel PCs therefore support the installation of numerous software packages, such as customer-specific software or other commercially available standard visualisation software. Of course, here too the operator can also work with the BARTEC “BMS-Graf-pro“ programming package (Version 7.xxx or newer). The BARTEC PROFIBUS-DP interface can only be used in connection with the BARTEC “BMS-Graf-pro” software.

Technical data *

Protection class IP 65 (front)
IP 54 (back)
Structure Front-panel fitting
Dimensions 411 mm x 332 mm x approx. 135 mm
Wall cut-out 394.5 mm x 315.5 mm + 0.5 mm
Material Front: polyester foil on anodised aluminium plate
(conditionally UV-resistant)
Back: bichromated sheet steel
Storage temperature -20 °C to +50 °C
Vibration 0.7 g/1 mm; 5 Hz – 500 Hz pulse in all 3 axes
Shock resistance 15 g/11 ms pulse in all 3 axes
Weight approx. 23 kg
Display 15” graphics-capable TFT colour display
16.2 million colours
XGA resolution, 1024 x 768 pixels
Brightness 500 cd/m2
Visible area approx. 304 x 228 mm
Contrast 800:1
Antireflection-coating glass pane
Optional touchscreen (resistive)
Operating system Windows 7® Ultimate or
Windows 7® Embedded MUI
CPU AMD T40E/2 x 1,0 GHz
Memory 4 GB RAM/100 GB HD
optional: 128 GB SSD
Voltage AC 90 to 253 V, 50 to 60 Hz
DC 24 V ± 10 % on request
Power Pmax. < 70 W

*Refer to the documentation for more detailed information


Documentation

Data Sheet – POLARIS PROFESSIONAL Panel PC 15″

GermanEnglish

Declaration of Conformity 11-71V0-7C0001

GermanEnglishFrench

Brochure – POLARIS

GermanEnglishFrenchRussianSpanishPortugueseChineseItalianTurkish

Weight 23.0 kg
Dimensions 41.1 × 33.2 × 13.5 cm
