For Zone 1 and 21

  • LED technology
  • High screen resolution
  • Touchscreen
  • 1.6 GHz processor power
  • Direct connection in hazardous areas
  • Option of Windows 7
  • Integrated keyboard customization
Additional information

ExProduct picture



German English IBExU05ATEX1117 X
English IECEx IBE 11.0007X
American Canadian CSA 70010166
Russian TC RU C-DE-BH02.B.00586
Chinese NEPSI GYJ18.1382X
Portuguese UL-BR 11.0131X
Indian CCEs P421455
Korean KCS KTL 14-KB4BO-0258X


Ex II 2G Ex db eb q [ib] IIC T4 Gb
Ex II 2D Ex tb IIIC T120 °C Db
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db

Ambient temperature

Operation: 0 °C to +50 °C
Variant Operation: -20 °C to +50 °C
on request (without external heating)

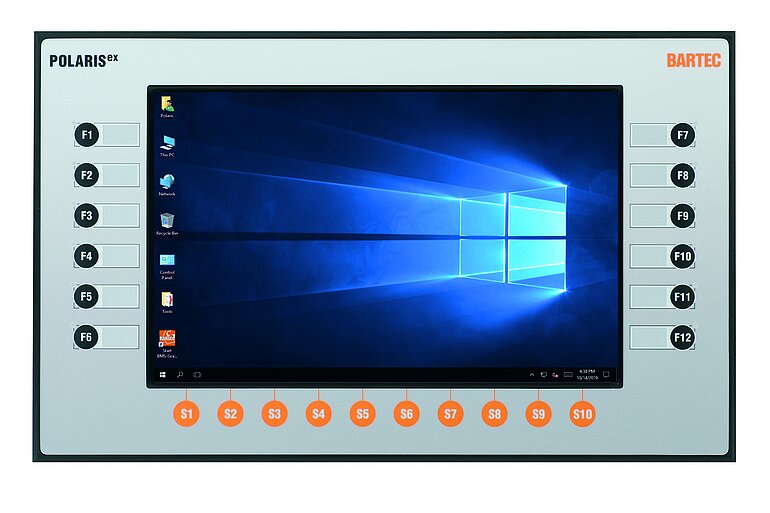

The POLARIS Panel PC 12.1″ W is an innovative new development of the POLARIS PROFESSIONAL series. The high-resolution display with LED backlighting and touchscreen allow intuitive and comfortable operation. Even with wide viewing angles or when lighting is poor, the state-of-the-art LED display technology assures the optimum in contrast. The panel PC has been equipped as standard with the Dual Core Processor AMD T40E/2 x 1.0 GHz; 4 GB RAM. Windows 7® Ultimate or Windows 7® Embedded MUI can be used as an operating system. Thanks to the integrated keyboard customisation for Windows®, Siemens WinCC flexible®, RS View® or BMS-Graf-pro, the POLARIS Touch panels can be used for all visualisation tasks. They can be connected to the control or the process control system through Ethernet, PROFIBUS-DP or various serial COM interfaces. Of course, here too the user can work with the latest BMS-Graf-Pro Version 7, allowing for example the transfer of projects through Ethernet, the use of graphics lists and the integrated user administration. Wired electrical connections are facilitated by integrated terminal compartments. The front-panel fitting design ensures easy installation. On request, the devices are also available as readymade system solutions in Stainless-steel enclosure for wall or floor mounting. They also feature an intrinsically safe USB interface for a USB Ex i flash drive. Intrinsically safe input devices can also be connected.

Technical data *

Protection class IP 65 (front)
IP 54 (back)
Structure Front-panel fitting
Dimensions 400 mm x 246 mm x approx. 130 mm
Wall cut-out 386 mm x 226 mm + 0.5 mm
Material Front: polyester foil on anodised aluminium plate
(conditionally UV-resistant)
Back: bichromated sheet steel
Storage temperature -20 °C to +50 °C
Humidity 5 % to 95 % non-condensing
Vibration 0.7 g/1 mm; 5 Hz – 500 Hz pulse in all 3 axes
Shock resistance 15 g/11 ms pulse in all 3 axes
Weight approx. 14 kg
Display 12.1″ W graphics-capable TFT colour display
16.7 million colours
WXGA resolution, 1280 x 800 pixels
Brightness 400 cd/m²
Visible surface approx. 264 x 166 mm
Contrast 1000:1
Touchscreen (resistive)
Interface (basic version)
1 x Ex e Ethernet 100/10BaseT
1 x Ex e RS422
1 x Ex i USB for Ex i memory stick
1 x Ex i PS/2 for intrinsically safe mouse
Variant without front-panel keys: 2 x Ex i PS/2
Keyboard 10 special keys and
12 inscribable function keys with LEDs
Optional variant: Without front-panel keys
Operating system Windows 7® Ultimate or
Windows 7® Embedded MUI
CPU AMD T40E/2 x 1.0 GHz
Memory 4 GB RAM/100 GB HD
optional: 128 GB SSD
Voltage DC 24 V ± 10 %
Power Pmax. < 35 W

*Refer to the documentation for more detailed information


Data Sheet – POLARIS PROFESSIONAL Panel PC 12,1″ W


Declaration of Conformity 11-71V0-7C0001


Brochure – POLARIS


Weight 14.0 kg
Dimensions 40.0 × 24.6 × 13.0 cm
