LUXELL CAMERA-S

  • FPA RESOLUTION : 256 pixels (pixel: 600 um x 60 um)
  • READOUT METHOD : Rolling shutter (x-y addressed)
  • READOUT CHANNELS : 2 A/D channels
  • INTERFACE : USB 2.0 with industrial connector
  • METAL HOUSING : IP67-rated
  • OPTICS : f=35 mm, F#1.1, CS-mount, IP67
Description
Additional information

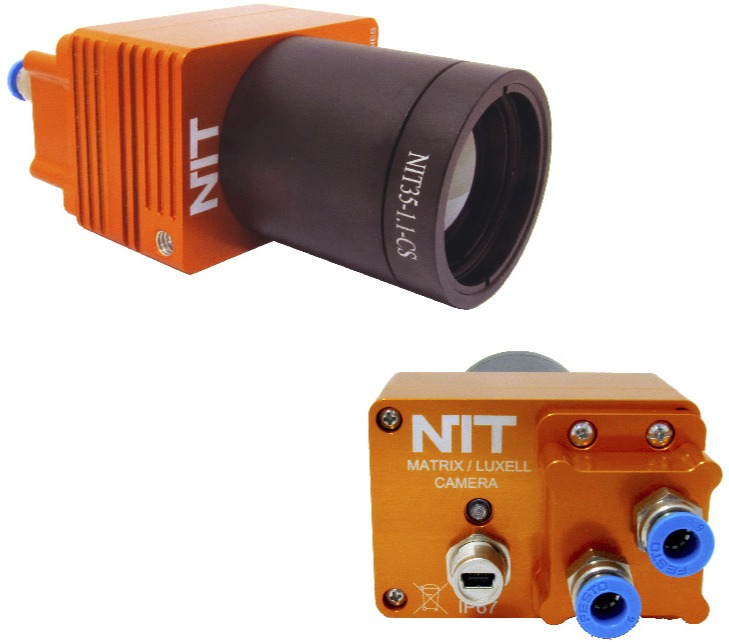

LUXELL CAMERA-S

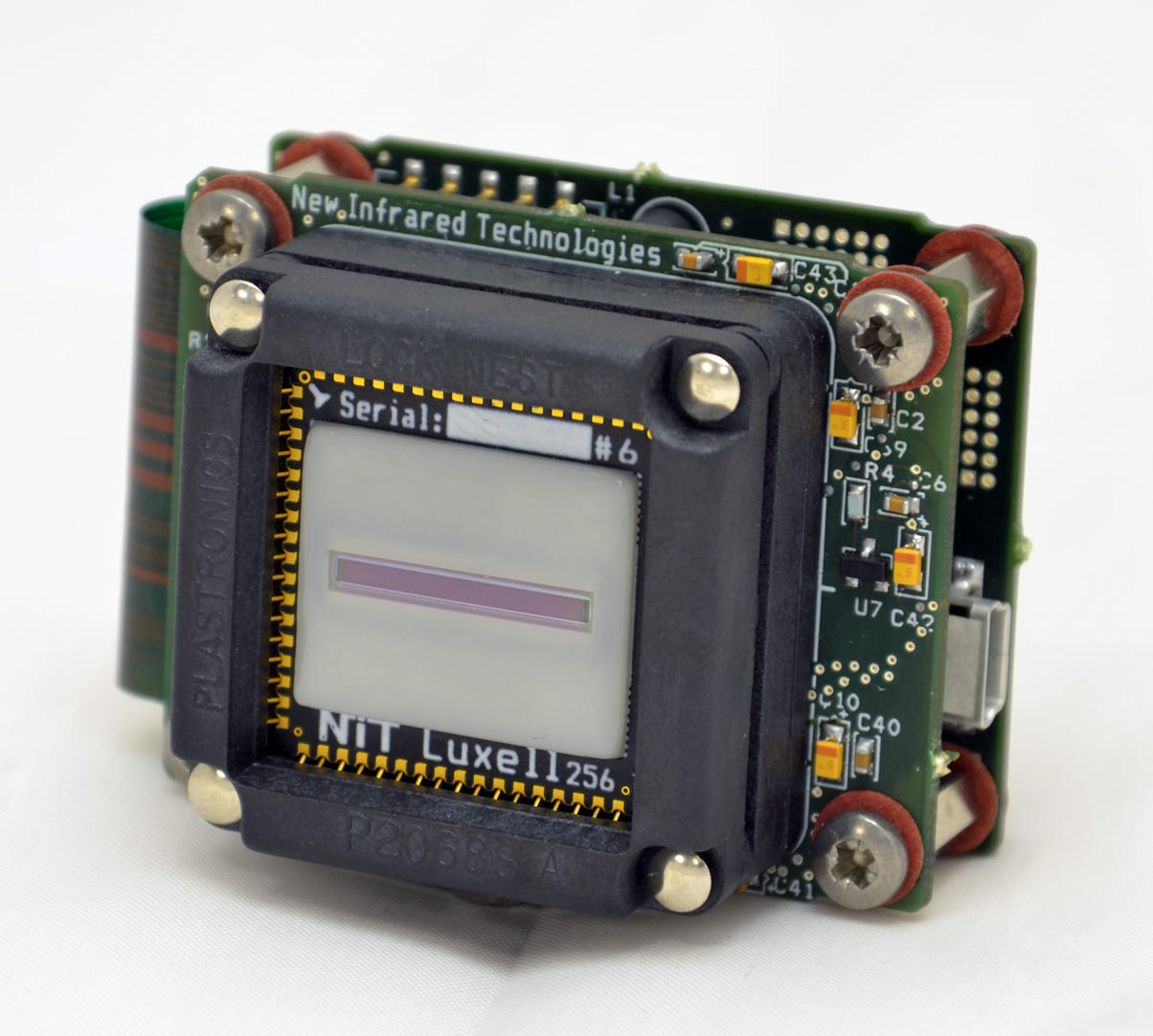

  • The LUXELL CAMERA-S is the industrial version with IP67-rated housing of the linear scanning array LUXELL-CORE-S with FPA 256 pixels. It acquires a maximum of 300 lines per second, has USB 2.0 interface and industrial connector. The lens, with f/35 mm and CS-mount optical interface, is IP67-rated as well.
  • The camera includes the LUXELL SOFTWARE SUITE and a development kit for LabVIEW.
  • The system is plug-and-play and is optimum for the development of affordable solutions and integration in the production line.

Applications

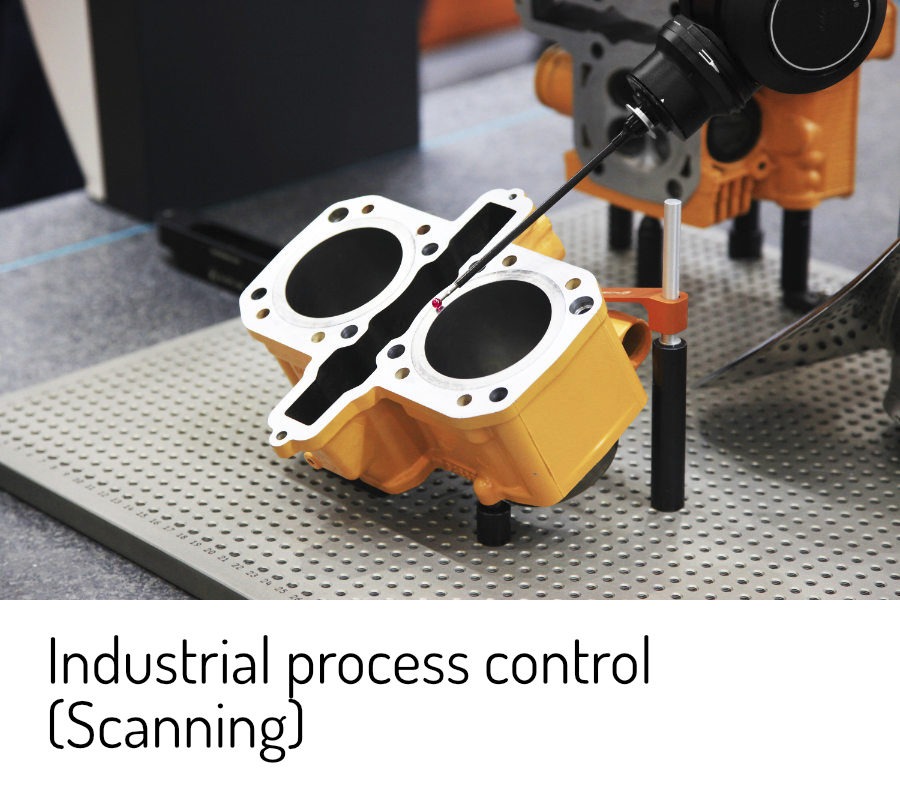

  • Industrial process control (scanning)

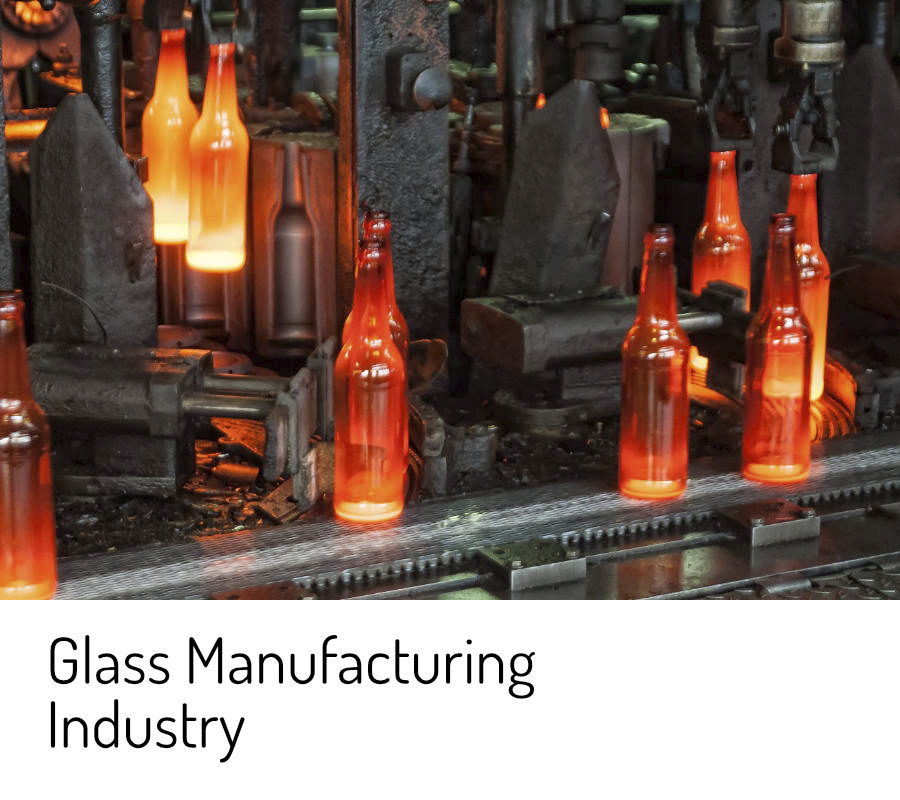

  • Glass manufacturing industry
  • Gas and flame detection

SPECIFICATIONS

DETECTOR VPD PbSe LUXELL FPA 256, uncooled performance at room temperature
FPA FORMAT Lineal array, 1×256 pixels
PIXEL SIZE 600 um (H) x 60 um (W)
SPECTRAL RANGE OF DETECTION MWIR (1.0 to 5.0 microns)
PEAK WAVELENGTH OF DETECTION 3.7 microns
OPTIMUM TEMPERATURE DETECTION RANGE >100 ºC
INTEGRATION TIME (US) Configurable: 4 – 20 microseconds
LINE RATE 300 lines per second (max)
READOUT METHOD Rolling shutter, 2 ADC channels
COMMUNICATION INTERFACE USB 2.0 High-Speed
DATA COMMUNICATION 14 bit
TRIGGER No
START-UP TIME < 10 seg
POWER 1 W (5 VDC, 0.2 A) – USB powered

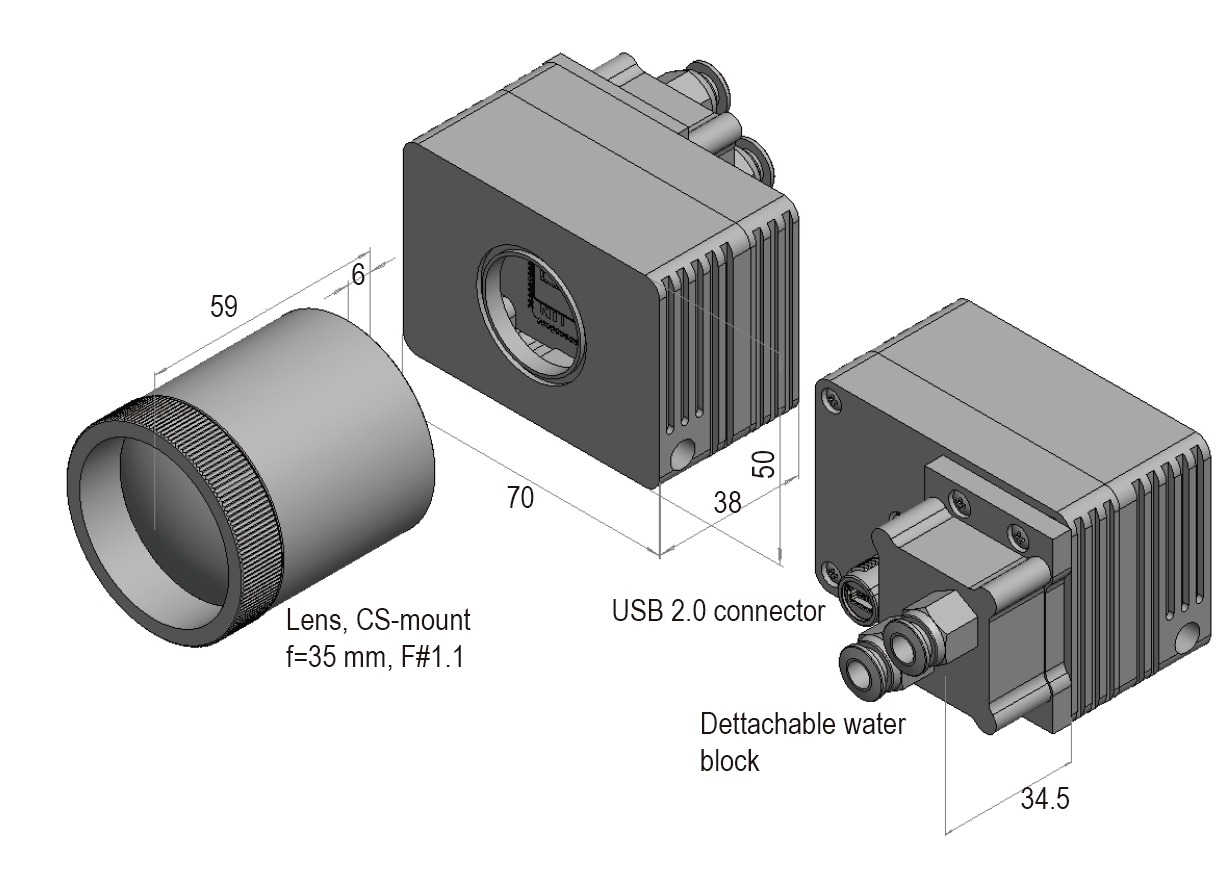

EXTERNAL HOUSING Metal housing with CS-mount optics interface, industrial USB 2.0 connector (M12x1) and screw holes for tripod
Includes water block for thermal stabilization of FPA with water or air
IP67-rated
OPTICS Silicon lens with AR coating, f=35 mm, F#1.1
FoV: 25º (h) x 1º (v), manual focus, CS-mount optics interface (dettachable)
FoR (@1m) = 440 mm (h) x 17 mm (v)
CAMERA-S SIZE WITH HOUSING, WATER BLOCK AND LENS, MM) 70 (L) x 131.5 (W) x 50 (H)
OTHER INFORMATION Mechanical shutter for 1-pt offset
SOFTWARE NIT SOFTWARE SUITE (Acquisition and visualization SW), LabVIEW SDK
THE SYSTEM INCLUDES 1x LUXELL CAMERA-S with lens f=35 mm
1x USB cable with industrial connector
Weight 0.400 kg
Dimensions 7.1 × 13.15 × 5.0 cm
