SKU: ECH-PCI-BE3-H4B Category: Expansion Chassis Tag: Equvera-Contec Brand: Contec

Description

Specifications

Ordering Informations

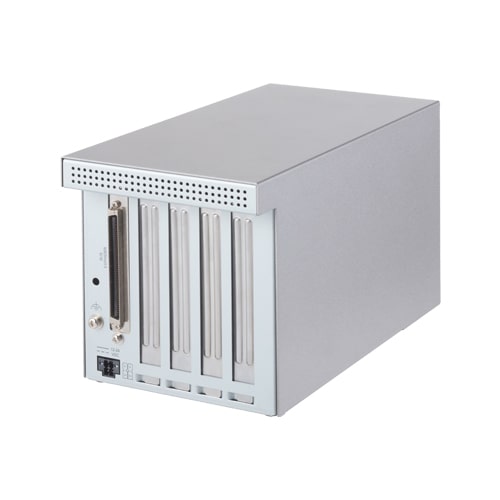

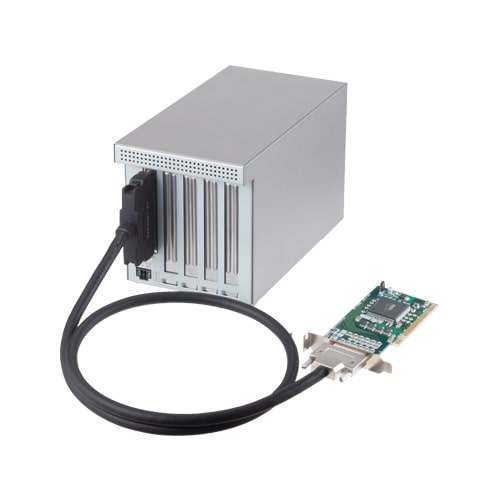

This product is an expansion chassis that adds a PCI bus expansion slot by connecting the PC main unit with an expansion adapter (sold separately).

PCI (5V/32bit 33MHz) bus slots can be added to a PC

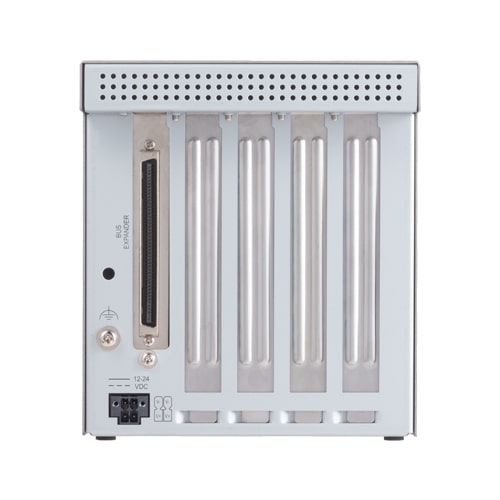

- PCI bus (5V/32bit 33MHz) can be expanded. 4 slots can be added.
PCI bus boards can be connected
- ECH-PCI-BE3-H4B can connect four short size [176.5(L)×107(H)mm] PCI bus cards.
ON/OFF control of the chassis can be linked to a PC
- Can link the ON/OFF control of the expansion chassis to that of a PC.

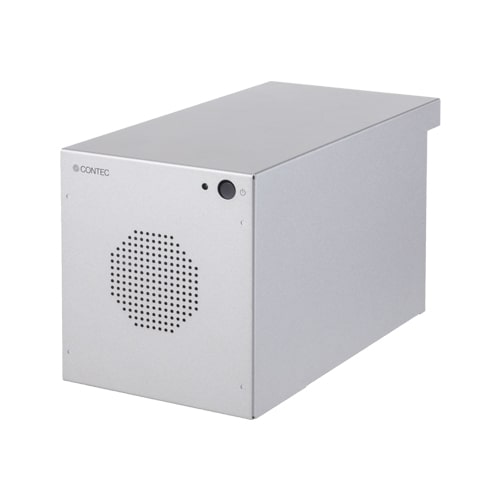

Steel chassis with cooling fan
- Steel chassis with cooling fan suitable for use in fields.
Compact housing design enables space-saving system construction
- As the product supports a wide range of power supplies (10.8 to 31.2VDC), the chassis can be used in a variety of power environments.
A wide range of power supplies (10.8 to 31.2VDC) supported
- It supports a wide range power supply of 10.8 to 31.2VDC and can be used in various power supply environments. An optional AC adapter (PWA-160AWD2) is available.

Specifications

Model	Description	Certification
ECH-PCI-BE3-H4B	Bus extension type PCI bus expansion chassis (short x 4)

Item	Item Name
EAD(LPCI)BE	PCI Bus Expansion Adapter for Low Profile PCI PC-Slot
EAD(PCI)BE	PCI Bus Expansion Adapter for PCI Bus PC-Slot
EAD-BE-LPE	PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot

Item	Item Name
PWA-160AWD2	Switching AC adapter(24VDC 6.6A)
