SKU: ECH-PCI-BE3-F7A Category: Expansion Chassis Tag: Equvera-Contec Brand: Contec

Description

Specifications

Ordering Informations

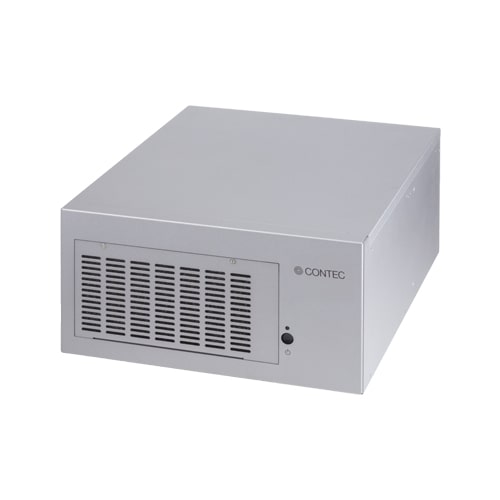

This product is an expansion chassis that adds PCI bus expansion slots to a PC by being connected to the PC via a built-in power supply.

PCI (5V/32bit 33MHz) bus slots can be added to a PC
- PCI bus (5V/32bit 33MHz) can be expanded. 7 slots can be added.

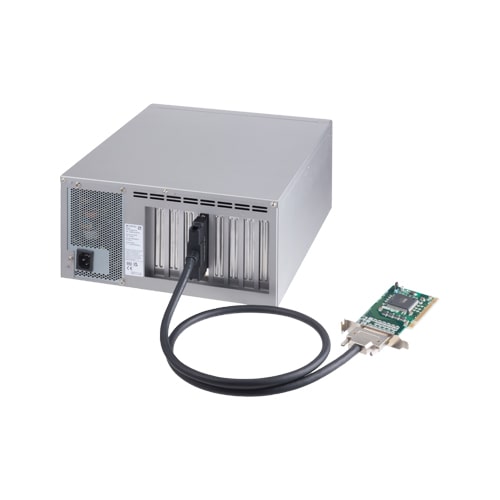

PCI bus boards can be connected
- ECH-PCI-BE3-F7A can connect four long size [313.8(L)×107(H)mm] PCI bus cards.
ON/OFF control of the chassis can be linked to a PC
- Can link the ON/OFF control of the expansion chassis to that of a PC.
Steel chassis with cooling fan
- Steel chassis with cooling fan suitable for use in fields.

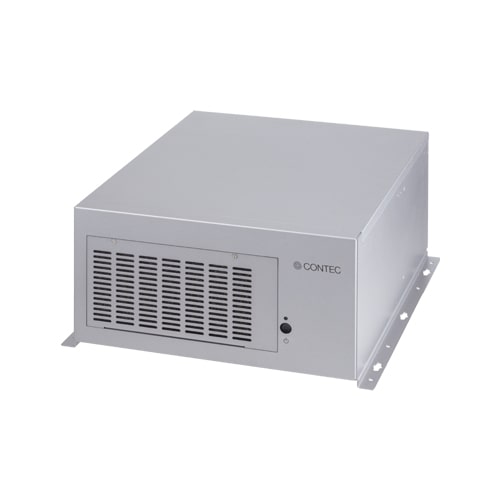

Rack-mountable
- Wall mounting is possible by attaching fixing brackets for expansion chassis (sold separately).

Specifications

Model	Description	Certification
ECH-PCI-BE3-F7A	Bus extension type PCI bus expansion chassis (long x 7)

Item	Item Name
EAD(LPCI)BE	PCI Bus Expansion Adapter for Low Profile PCI PC-Slot
EAD(PCI)BE	PCI Bus Expansion Adapter for PCI Bus PC-Slot
EAD-BE-LPE	PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot

Item	Item Name
ECH-WM-FIX-F	Fixing bracket for expansion chassis (long)
