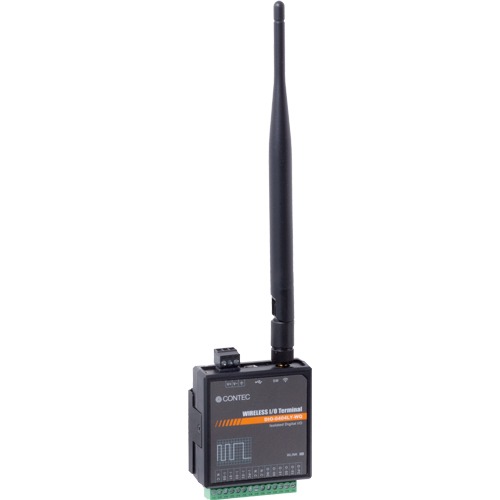

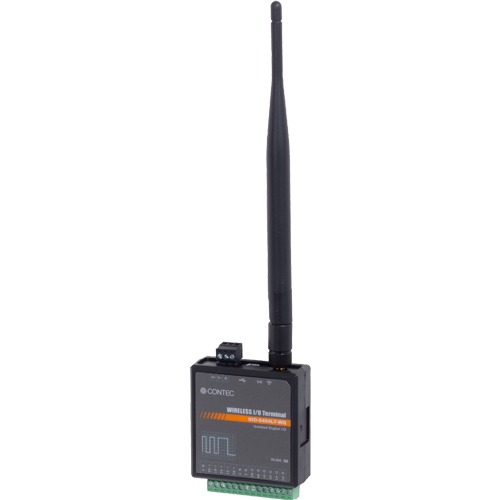

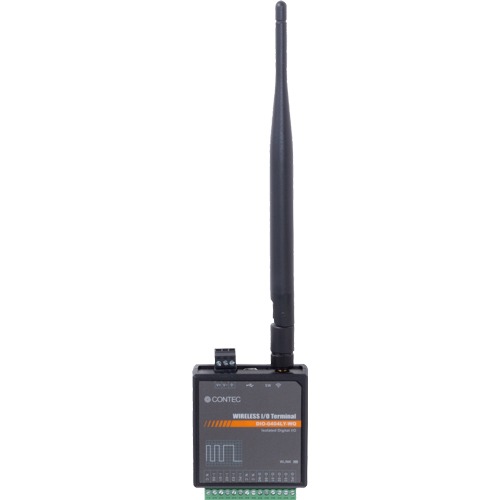

DIO-0404LY-WQ-CN

  • Supports Sub-1GHz band wireless with excellent transmission distance
  • Highly reliable mesh communication
  • P2P (Peer-to-Peer) mode within
  • Windows version of digital I/O driver API-DIO(WDM)
  • Easy mounting on DIN rail
  • Opto-coupler isolated inputs (compatible with current sink output), Opto-coupler isolated open-collector outputs (current sink type)
SKU: DIO-0404LY-WQ-CN Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a digital I/O terminal that sends I/O digital signals wirelessly in 868MHz band. Data is sent to Ethernet gateway (Master) of the Wireless I/O series. With strength against obstacles, capability of long-distance communications in 868MHz band, and mesh support, it is suitable to control or monitor devices that are spread in the wide area.The product supports I/O of 12 – 24VDC digital signals, contains opto-coupler isolated input (current sink output support) 4-channel and opto-coupler isolated open-collector output (current sink type) 4-channel.Other features are a digital filter function which prevents wrong recognition of input signals, an ability to change outputting to the specified patterns when a communication error occurs.With the provided driver library API-DIO (WDM), you can create application software for Windows using various programming languages supporting Win32 API functions such as Visual Basic and Visual C ++.

  • *This terminal should always be used along with Ethernet gateway (Master) of the Wireless I/O series, or use two terminals as a pair.
  • *Driver library can be downloaded from the Contec website.
  • *DIO-0404LY-WQ-CN can be used in China only.
  • Supports Sub-1GHz band wireless with excellent transmission distance
    • This product converts the I/O digital signals wirelessly in the 868MHz band and transmits to the gateway. From the LAN port of a PC, digital signals (12 – 24 VDC) can be easily input or output via the gateway. The Sub-1GHz band, with the good wraparound characteristics of radio waves, the transmission distance (about 1 km) can be extended even there are obstacles. Stable communication can be achieved even in the environment where radio waves are mixed. As the product is suitable for long distance communication, network can be constructed on the wide area in the facilities without cable wiring.
  • Highly reliable mesh communication
    • With wireless mesh technology, the communication continues by changing the routes automatically even when disconnection occurs, for example. Communication stability enables the wireless network to be strong against obstacles.
  • P2P (Peer-to-Peer) mode within
    • Without using the Ethernet gateway (Master), a pair of terminals can transmit digital input signals to each other.*1
      • *1Available with the firmware Ver1.20 or later versions.
  • Windows version of digital I/O driver API-DIO(WDM)
    •   Driver software for Windows with Win32API function (DLL) is ready to use.
        The driver software contains sample programs such as VisualBasic and VisualC++, and the diagnosis program to check the software operation.
        For more details on the supported OS, applicable language and new information, please visit the CONTEC’s Web site.
  • Easy mounting on DIN rail

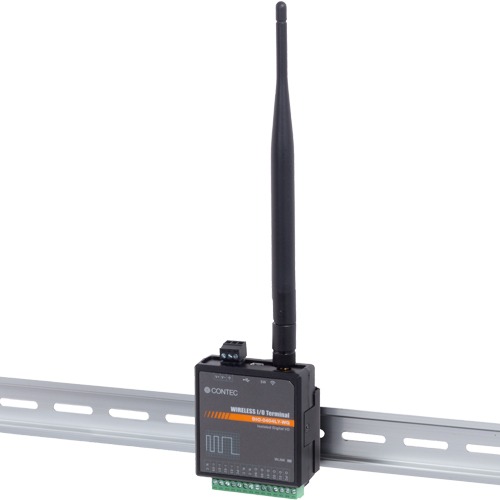

    •   This product can be mounted on DIN rail with an optional fixing bracket.
  • Opto-coupler isolated inputs (compatible with current sink output), Opto-coupler isolated open-collector outputs (current sink type)
    • This product has the 4 channels of Opto-coupler isolated inputs (compatible with current sink output) and the 4 channels of Optocoupler isolated open-collector outputs (current sink type) whose response speed is within 200μsec respectively.

Specifications

Specifications
Add-on Module
Series Wireless I/O
Bus Specification Sub-1GHz band wireless
Size Y Type
Used Connector 1x Screw terminal block 14-pin
Digital I/O
Input Channels 4-ch
Output Channels 4-ch
Bi-directional I/O Channels
Response Time (Input) 200μsec (max.)
Response Time (Output) 200nsec (max.)
Operating Voltage (Input) 12 to 24VDC
Operating Voltage (Output) 12 to 24VDC
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Opto-isolated open-collector output (current sink type)
Built-in Power Supply
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
DIO-0404LY-WQ-CN Digital Input and Output Sub-1GHz band wireless I/O unit 4ch/4ch (isolated 12 – 24VDC) Only for China Market

    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Power Supply / AC Adapter
    Item Item Name
    POA201-10-2 AC adaptor (12V,1A)
    Other Accessories
    Item Item Name
    BRK-WQ-Y Bracket for Wireless I/O Terminal products
    CN6-Y14 14 pin Terminal connector(screw type) 6/set
    GW1-ETH-WQ-CN Sub-1GHz Band Wireless to Ethernet LAN Gateway (Only for China Market)
