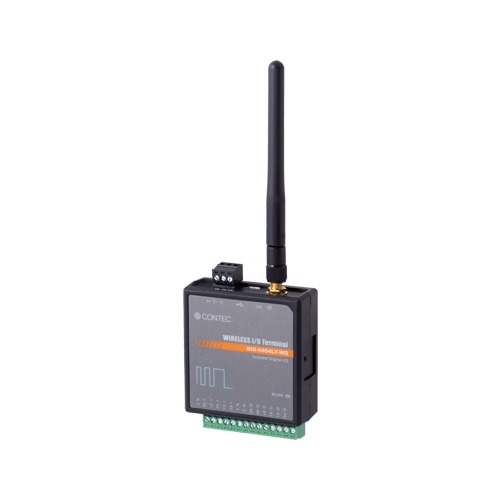

A 920MHz wireless I/O terminal of isolated digital input and output. 4ch opto-isolated digital inputs, 4ch opto-isolated open-collector digital outputs. (Japan Only)
| Series | Wireless I/O |
|---|---|
| Bus Specification | Sub-1GHz band wireless |
| Size | Y Type |
| Used Connector | 1x Screw terminal block 14-pin |
| Input Channels | 4-ch |
|---|---|
| Output Channels | 4-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200nsec (max.) |
| Response Time (Output) | 200nsec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | Opto-isolated input (for sink current output) |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
| Model | Description | Certification |
|---|---|---|
| DIO-0404LY-WQ | Digital I/O 920MHz wireless I/O unit 4ch/4ch (isolated 12 – 24VDC) (Japan Only) |
|
| Item | Item Name |
|---|---|
| API-DIO(LNX) | Linux version Digital I/O Driver |
| API-DIO(WDM) | Windows Driver for Digital I/O Driver |
| Item | Item Name |
|---|---|
| DAQ-LV-WIN | LabVIEW Data Acquisition Library |
| Item | Item Name |
|---|---|
| POA201-10-2 | AC adaptor (12V,1A) |
| Item | Item Name |
|---|---|
| CPS-ANT-R3-01 | External 3G Antenna for CPS-MC341 series |
| Item | Item Name |
|---|---|
| BRK-WQ-Y | Bracket for Wireless I/O Terminal products |
| CN6-Y14 | 14 pin Terminal connector(screw type) 6/set |
| GW1-ETH-WQ | 920MHz Wireless to Ethernet LAN Gateway (Japan Only) |
