CPS-MM-LC_img1CPS-MM-LC_img1

CPS-MM-LC

  • Find isolation deterioration in motor
  • No base board required
  • Compact design
  • Adaptable to a temperature range between -20 and +60°C
  • Equipped with LED for an operation check

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-MM-LC Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

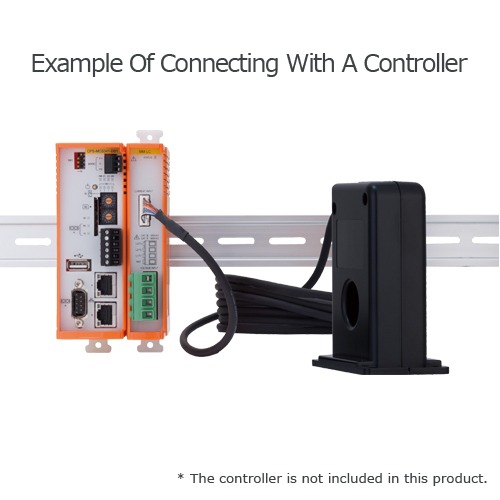

    This product is a module to monitor leakage current of the equipment in a live state that is driven by three-phase alternating current power. Set this module to operate along with the CONPROSYS series configurable type CPU module controller. It has a function useful for early deterioration discovery in the three-phase motor or invertors, which are widely used in the FA factories or water treatment facilities, for instance in a pump, and the system can be examined while power is active.

    • Find isolation deterioration in motor
      • This product finds isolation deterioration of the three-phase induction motor by calculating isolation resistance from the measured applied voltage as well as ground fault current to the three-phase induction motor (three-phase motor). Isolation resistance in a live state can be accurately measured, and it is applicable to detect isolation deterioration of the three-phase induction motor. The product can be set either in front of or behind the inverter.
    • No base board required
      • As the product requires no base board for installation, it helps add modules easily and smoothly. Installed modules can be removed from any set positions on DIN rail.
    • Compact design
      • Compact design, 25.2(W)×94.7(D)×124.8(H) mm, features flexibility in installation.
    • Adaptable to a temperature range between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
    • Equipped with LED for an operation check
      • The product has LED for an operation check, which helps you visually confirm the communication status of each interface.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS I/O Module
    Bus Specification CONPROSYS stack bus
    Size CONPROSYS 1U
    Used Connector 1x 7.62mm-pitch 4-pin 2-piece terminal block
    Measurement Instrument
    Measurement Instrument Insulation deterioration diagnosis
    Function Earth leakage measurement (power supply mode); Earth leakage measurement (inverter mode)
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPS-MCS341 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-MM-LC Insulation Deterioration Monitoring CONPROSYS I/O Module / 1ch (Earth leakage measurement) / Bus Isolation

      –

      Options
      Controller unit
      Item Item Name
      CPS-MCS341-DS1-111 CONPROSYS M2M Controller – Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
      CPS-MCS341-DS1-131 CONPROSYS M2M Controller – Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
      CPS-MCS341G-DS1-130 CONPROSYS M2M Controller – Configurable Type / 3G WAN (Japan only) / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
      CPS-MGS341-DS1-131 CONPROSYS M2M Gateway – Stackable Type CPU Module / OPC UA / MT connect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
      CPS-MGS341G5-DS1-130 CONPROSYS M2M Gateway – Stackable Type CPU Module / 4G LTE / OPC UA / 2x LAN / 4x DI / 4x DO / 1x RS-232C
      Power Supply / AC Adapter
      Item Item Name
      CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
      CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
