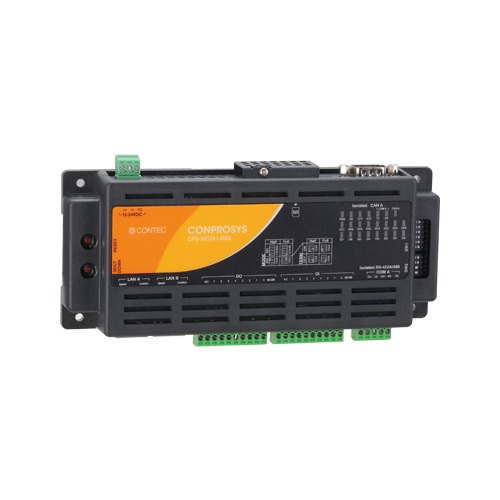

CPS-MC341-DS2-911_img1CPS-MC341-DS2-911_img1

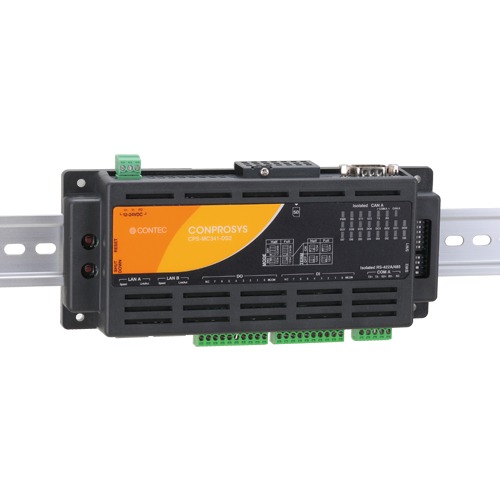

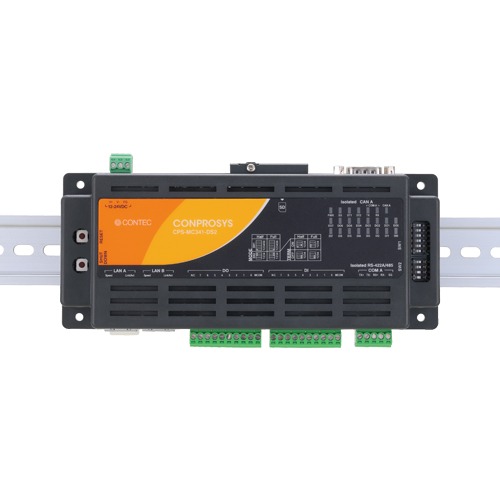

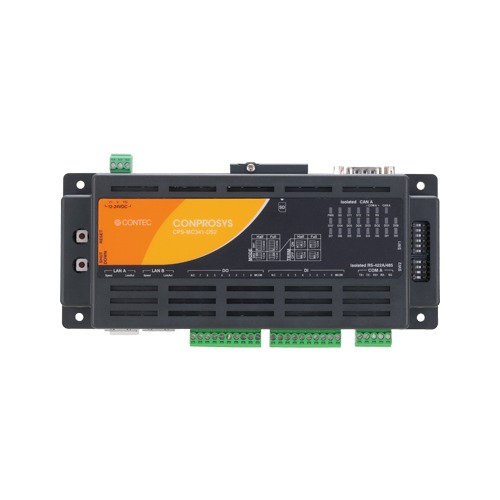

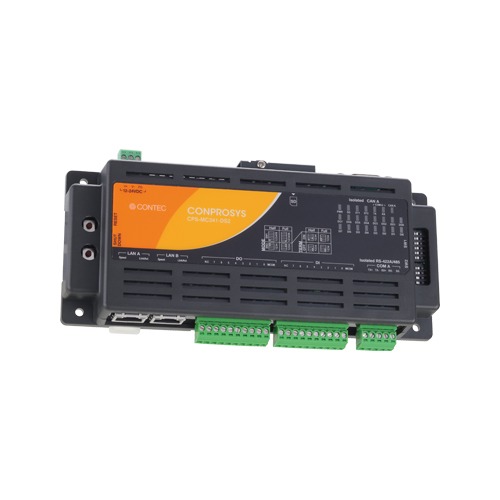

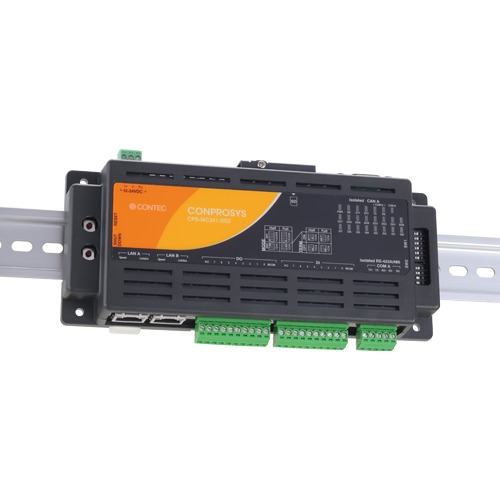

CPS-MC341-DS2-911

  • Measurement and Upload
  • Web Monitoring
  • Web Task Script
  • Message Communication Function
  • Compact Design
  • Adaptable to a temperature range between -20 and 60°C

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-MC341-DS2-911 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a M2M controller with isolated CAN, isolated RS-422A485, isolated digital input/output, and LAN interface. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.This product is in compliant with the following standards: CE, FCC, UL and VCCI.

    • Measurement and Upload
      • The product measures data with an external sensor and uploads them to the Cloud server.
    • Web Monitoring
      • The product contains a Web server. Even with the PC located remotely, I/O information can be monitored and updated through a Web browser. On the monitoring screen, the standard GUI parts (graphic, slider, button, etc.) can be freely arranged. All operations including monitoring layout, making relations with I/O information, can be achieved through a Web browser.
    • Web Task Script
      • By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operations can be completed through a Web browser.
    • Message Communication Function
      • With the RS-422A/RS-485 or the Ethernet device (TCP/UDP), up to 10 links can be set to send or receive messages. Message communication can be accomplished from Web task script.
    • Compact Design
      • Compact design, 188.0(W) × 78.0(D) × 30.5(H), features flexibility in installation.
    • Adaptable to a temperature range between -20 and 60°C
      • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Controller Unit
    Series CONPROSYS M2M Controller
    Communication Ports Ethernet (LAN)
    Programming CONPROSYS VTC
    Stack bus –
    Function Data transfer (https); Modbus/TCP slave
    Digital I/O
    Input Channels 8-ch
    Output Channels 8-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200μsec (max.)
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit Opto-isolated input (for sink current output)
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply 12VDC
    Analog I/O
    Input Channels –
    Input Range –
    ADC Resolution –
    Sampling Rate –
    Input Buffer Memory
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory
    Counter
    Number of Channels –
    Counting System –
    Response speed –
    Serial Comm.
    Number of Channels 1x RS-422A/485 [ASYNC]; 1x CAN
    Transmission Speed 300 ~ 115,200bps
    Isolation Property
    Transmission Method

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-MC341-DS2-911 [Limited Stock] [End of Repair Service : September 30, 2031] CONPROSYS M2M Controller – Integrated Type / 1x LAN + HUB / 8x DI / 8x DO / 1x RS-485 / 1x CAN
    • CE marking
    • FCC compliant
    • VCCI
    • UL
    Options
    SCADA Software
    Item Item Name
    CONPROSYS HMI System (CHS) Web HMI / SCADA Software
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
    Storage
    Item Item Name
    SD-4GB-A 4GB SD Card
    Other Accessories
    Item Item Name
    CPS-MAG01-4 Magnet (Four Piece Set)
