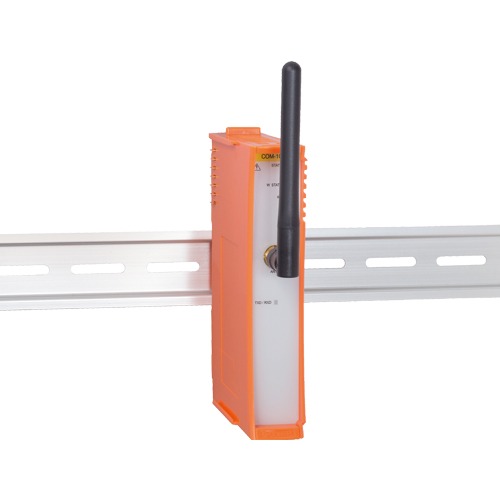

CPS-COM-1QL_img1CPS-COM-1QL_img1

CPS-COM-1QL

  • Wireless configurable module
  • Achieve farther distance wireless communication
  • Adaptable to a wide range of temperature between -20 and +60°C
  • Installation easy with DIN rail
  • Equipped with the LED for an operation check
  • No electrolytic capacitor
Request Quote


    Email Verification Code (required)



    SKU: CPS-COM-1QL Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a LoRa communication module and can be added to the CONPROSYS series configurable type controller.
    Serial data can be communicated wirelessly by LoRa modulation (920MHz band).
    Comparison to GFSK modulation system that is used in the same 920MHz band, using LoRa modulation for wireless modulation system achieves distance communication of 10 kilometers or farther.

    • Wireless configurable module
      • This product provides the function to the CONPROSYS series configurable type controller and uploads analog or digital measured data to web server wirelessly via Master device.
    • Achieve farther distance wireless communication
      • Innovating LoRa modulation, which is well-suited for long-distance wireless communication, achieves data communication of 10 kilometers or farther.
        *Actual communication distance differs depending on the surroundings such as radio waves or obstructions.
    • Adaptable to a wide range of temperature between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
    • Installation easy with DIN rail
      • As the product is not only mounted on DIN rail, but also removable along the slide rails, replacing is simple and easy.
    • Equipped with the LED for an operation check
      • The product has the LED for an operation check, which helps you visually confirm the communication status of RS-232C interface.
    • No electrolytic capacitor
      • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS I/O Module
    Bus Specification CONPROSYS stack bus
    Size CONPROSYS 1U
    Used Connector –
    Serial Comm.
    Number of Channels 1x LoRa
    Transmission Speed 146.48 ~ 21,875bps
    Isolation Property –
    Transmission Method LoRa (ARIB STD-T108)
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPS-MCS341 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-COM-1QL CONPROSYS Series | LoRa Stack Module
    • VCCI
    • TELEC
    Options
    Controller unit
    Item Item Name
    CPS-MCS341-DS1-111 CONPROSYS M2M Controller – Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341-DS1-131 CONPROSYS M2M Controller – Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341G-DS1-130 CONPROSYS M2M Controller – Configurable Type / 3G WAN (Japan only) / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341-DS1-131 CONPROSYS M2M Gateway – Stackable Type CPU Module / OPC UA / MT connect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341G5-DS1-130 CONPROSYS M2M Gateway – Stackable Type CPU Module / 4G LTE / OPC UA / 2x LAN / 4x DI / 4x DO / 1x RS-232C
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
    Antenna
    Item Item Name
    CPS-ANT-R3-01 External 3G Antenna for CPS-MC341 series
