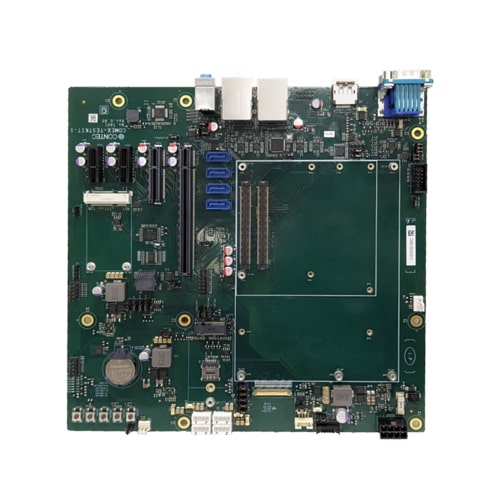

This product is a COM Express carrier board designed to work with COM Express modules of standards Type 6, and servers as a platform for customization systems quickly and efficiently, offering flexibility in system designs. The COMEX-TESTKIT-1 carrier board excels in manufacturing, healthcare, and digital signage. With advanced features, rich connectivity, and robust reliability, it epitomizes efficiency across diverse industries.
| Type | Micro ATX |
|---|
| Supported OS | – |
|---|
| CPU Generation (Development code) | – |
|---|---|
| Processor | – |
| CPU socket | – |
| Memory | – |
| RAS | – |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |
| Video | 1x DisplayPort (v1.4); 1x Analog RGB; 1x LVDS |
|---|---|
| LAN | 2x 1000BASE-T/100BASE-TX/10BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in; – |
| I/O | 4x USB3.2 Gen2; 1x RS-232C |
| Memory card | – |
| Video | – |
|---|---|
| LAN | – |
| Audio | – |
| I/O | 2x USB2.0; 1x RS-232C/422A/485 |
| Power connector | – |
| Expansion bus | 1x M.2 Key B (3052); 1x PCI Express(x16); 1x PCI Express(x4); 1x PCI Express(x1); 1x Mini PCI Express |
|---|---|
| Drive bay | – |
| Input voltage | 12VDC |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F) |
|---|---|
| Storage temperature | -40 to 80°C (-40 to 176°F) |
| Standards & Certifications | – |
| Model | Description | Certification |
|---|---|---|
| COMEX-TESTKIT-1 | Industrial Motherboard / Micro-ATX / COM-Express Type6, Carrier Board |
– |
