COM-2C-LPE_img1COM-2C-LPE_img1

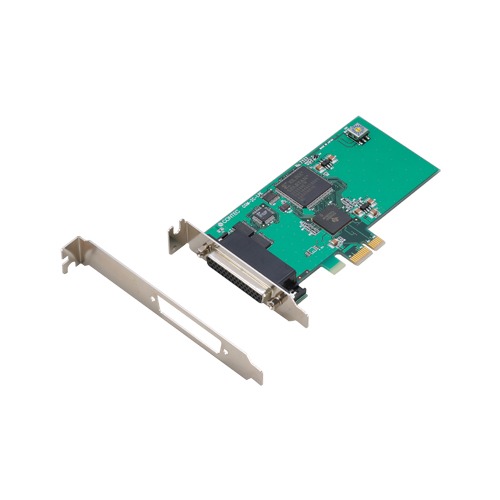

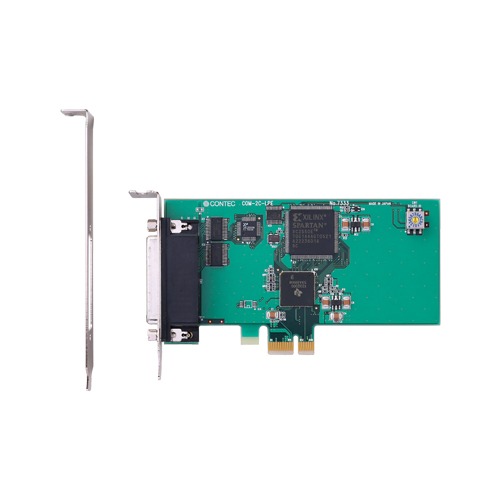

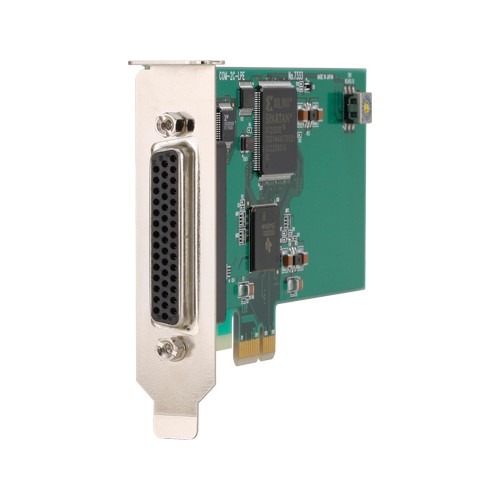

COM-2C-LPE

  • Max. 921,600bps RS-232C Serial Communication
  • Possibly used as Windows, Linux-standard COM ports
  • Up to 16 boards can be installed
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive
  • Support for Low Profile size slot / standard size slot (bundled with bracket)
  • The control line for RS-232C can be controlled and monitored by software

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: COM-2C-LPE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI Express bus-supported board of Low Profile size designed for extending RS-232C compatible serial communication functionality on your PC.COM-2C-LPE has two RS-232C communication port. With a 128byte built-in FIFO buffer for transmission and reception of each channel, the product supports a baud rate of up to 921,600bps. Windows/Linux device driver is supported with this product.

    • Max. 921,600bps RS-232C Serial Communication
      • The COM ports of this product support up to 921,600 bps.COM-2C-LPE has two RS-232C-standard serial port.
    • Possibly used as Windows, Linux-standard COM ports
      • Combining the product with our device driver COM-DRV makes it possible to use the product in the same manner as the COM ports of a PC.This product supports communication using DCB structures in the Win32 API and Linux-standard system calls. In addition, supplies a diagnostic program to confirm hardware operation and to perform a communication test with equipment.
    • Up to 16 boards can be installed
      • Up to 16 boards of the same model can be mounted on a single PC.
    • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive
      • Equipped with a buffer memory for transmitting 128 bytes and receiving 128 bytes for each channel. These are FIFO format, useful for high speed communications and to reduce the load to the CPU when transmitting/receiving.
    • Support for Low Profile size slot / standard size slot (bundled with bracket)
      • Bundled with each bracket for Low Profile size slot / standard size slot. Exchanges it for the standard size bracket when mounting on the standard size slot.
    • The control line for RS-232C can be controlled and monitored by software
      • The control lines for RTS, CTS, DTR and DSR can be controlled and monitored using software.

    Specifications

    Specifications
    Add-on Module
    Series –
    Bus Specification PCI Express
    Size Low Profile
    Used Connector D-SUB 44-pin (Female)
    Serial Comm.
    Number of Channels 2x RS-232C [ASYNC]
    Transmission Speed 30 ~ 921,600bps
    Isolation Property –
    Transmission Method RS-232C [Asynchronous]
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    COM-2C-LPE Serial Communication Low Profile PCI Express Card RS-232C 2ch
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-SIO(98/PC) Serial Communication Driver
    Cable
    Item Item Name
    PCE44/9P2S Divider Shield cable, D-SUB44pin -> 9pin x2 (0.25m) for Serial I/O Card
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
