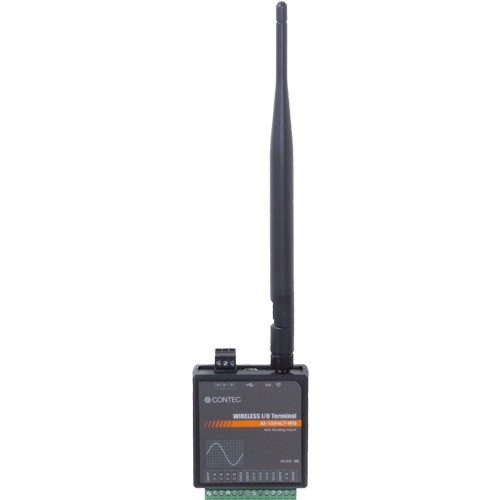

AI-1004LY-WQ-CN_img1AI-1004LY-WQ-CN_img1

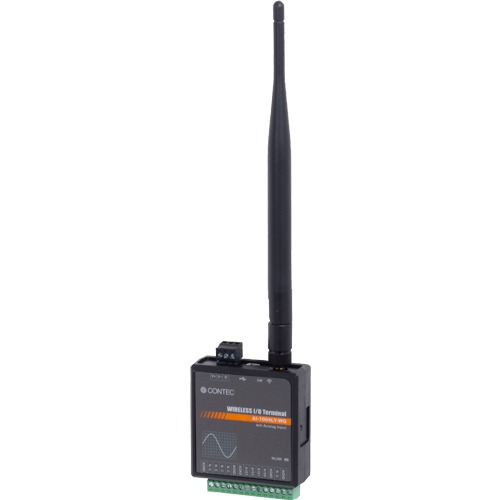

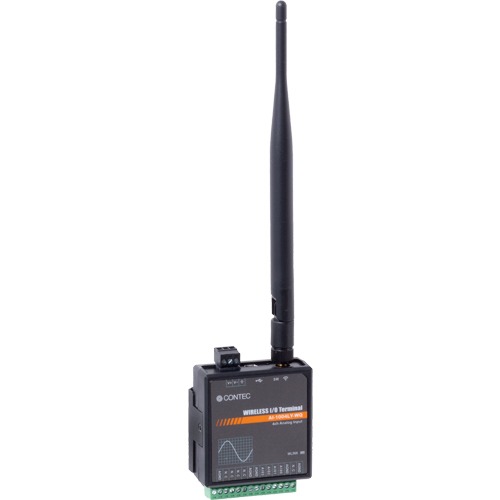

AI-1004LY-WQ-CN

  • Supports Sub-1GHz band wireless with excellent transmission distance
  • Highly reliable mesh communication
  • Adaptable to a wide range of temperature
  • Windows version analog input driver API-AIO(WDM)
  • Easy mounting on DIN rail
  • No adjustment for analog input
Request Quote


    Email Verification Code (required)



    SKU: AI-1004LY-WQ-CN Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an analog input terminal that sends input analog signals wirelessly in the 868MHz band. Data is sent to Ethernet gateway (Master) of the Wireless I/O series. With strength against obstacles, capability of long-distance communications in 868MHz band, and mesh support, it is suitable to control or monitor devices that are spread in the wide area. Four channels of 10-bit non-isolated analog input are equipped to support ±10V bipolar input. This product provides excellent cost performance afforded by focusing on solely analog input function. With the provided driver library API-AIO(WDM), you can create application software for Windows using various programming languages supporting Win32 API functions such as Visual Basic and Visual C ++.*This product should always be used along with the Wireless I/O series Ethernet gateway (Master).*Driver library can be downloaded from the Contec website.*AI-1004LY-WQ-CN can be used in China ohly.

    • Supports Sub-1GHz band wireless with excellent transmission distance
      • This product converts the input signals and transmits to the gateway wirelessly in the 868MHz band. From the LAN port of a PC, analog signals (±10V) can be easily input via the gateway. The 868MHz band, with the good wraparound characteristics of radio waves, the transmission distance (about 1 km) can be extended even there are obstacles. Stable communication can be achieved even in the environment where radio waves are mixed. As the product is suitable for long distance communication, network can be constructed on the wide area in the facilities without cable wiring.
    • Highly reliable mesh communication
      •   With wireless mesh technology, the communication continues by changing the routes automatically even when disconnection occurs, for example. Communication stability enables the wireless network to be strong against obstacles.
    • Adaptable to a wide range of temperature
      •   This product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
    • Windows version analog input driver API-AIO(WDM)
      •   Driver software with Win32API function (DLL) to support the function is ready to use per terminal.
          The driver software contains sample programs such as VisualBasic and VisualC++, and the diagnosis program to check the software operation.

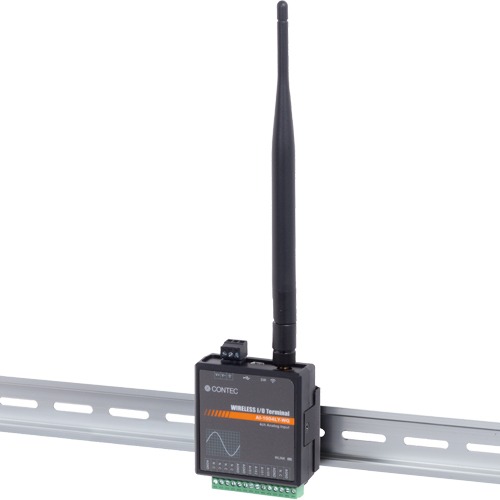

    • Easy mounting on DIN rail
      •   This product can be mounted on DIN rail with an optional fixing bracket.
    • No adjustment for analog input
      •   This product does not require analog input adjustment.
          Even the ambient temperature is -20 ° C or + 60 ° C, sampling with accuracy of ± 10 LSB can be carried out without adjustment.

    Specifications

    Specifications
    Add-on Module
    Series Wireless I/O
    Bus Specification Sub-1GHz band wireless
    Size Y Type
    Used Connector 1x Screw terminal block 14-pin
    Analog I/O
    Input Channels Single-ended 4-ch
    Input Range ±10V
    ADC Resolution 10-bit
    Sampling Rate –
    Input Buffer Memory
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory –
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) –
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit –
    Output Circuit –
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AI-1004LY-WQ-CN Analog Input Sub-1GHz Band Wireless I/O Unit / 4ch(10bit 100ks/s) 　（Only for China Market）

      –

      Options
      Device Drivers
      Item Item Name
      API-AIO(LNX) Analog I/O Driver for Linux
      API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
      Development Support Tools
      Item Item Name
      DAQ-LV-WIN LabVIEW Data Acquisition Library
      Power Supply / AC Adapter
      Item Item Name
      POA201-10-2 AC adaptor (12V,1A)
      Other Accessories
      Item Item Name
      BRK-WQ-Y Bracket for Wireless I/O Terminal products
      CN6-Y14 14 pin Terminal connector(screw type) 6/set
      GW1-ETH-WQ-CN Sub-1GHz Band Wireless to Ethernet LAN Gateway (Only for China Market)
