Data sheet

Cisco 8400 Series Secure Routers Data Sheet

A Part of the Cisco 8000 Series Secure Routers Family.

Last updated: November 10, 2025.

Download data sheet (PDF)
Watch SD-WAN demo

Request Quote

Overview

Cisco 8400 Series Secure Routers deliver secure networking simplified. Powered by the all-new secure networking processor and the unified Cisco secure networking platform, the Cisco 8400 Series Secure Routers deliver robust, platform-level security, advanced performance engineering through routing and SD-WAN, and on-premises, infrastructure-as-code, or cloud management flexibility that enables businesses to seamlessly scale and grow. Each class of secure routers is designed to deliver risk reduction, enhanced reliability, and future readiness.

Platform highlights

Cisco 8400 Series Secure Routers are optimized for campus environments and deliver powerful and scalable performance, centralized management, and advanced threat protection across internet edge networks. These secure routers support seamless integration with cloud and on-premises systems, providing a unified, resilient platform to connect and secure users, devices, and applications at enterprise scale.

Use cases

Secure WAN Aggregation for thousands of users/devices
Secure, reliable connectivity between campus and external networks
Internet Peering with multiple ISPs for network resiliency

Key features

Models and specifications

The Cisco 8400 Series Secure Routers are 1RU fixed form factor devices. There are three models: Cisco C8455-G2, 8455-G2-MX, and 8475-G2. Cisco C8455-G2 and the 8455-G2-MX provide 8 x 1 GE, 2 x 10 GE, and 2 x 25 GE ports, whereas the Cisco 8475-G2 provides 8 x 1 GE, 8 x 10 GE, and 4 x 25 GE ports. Learn more about the new 8455-G2-MX.

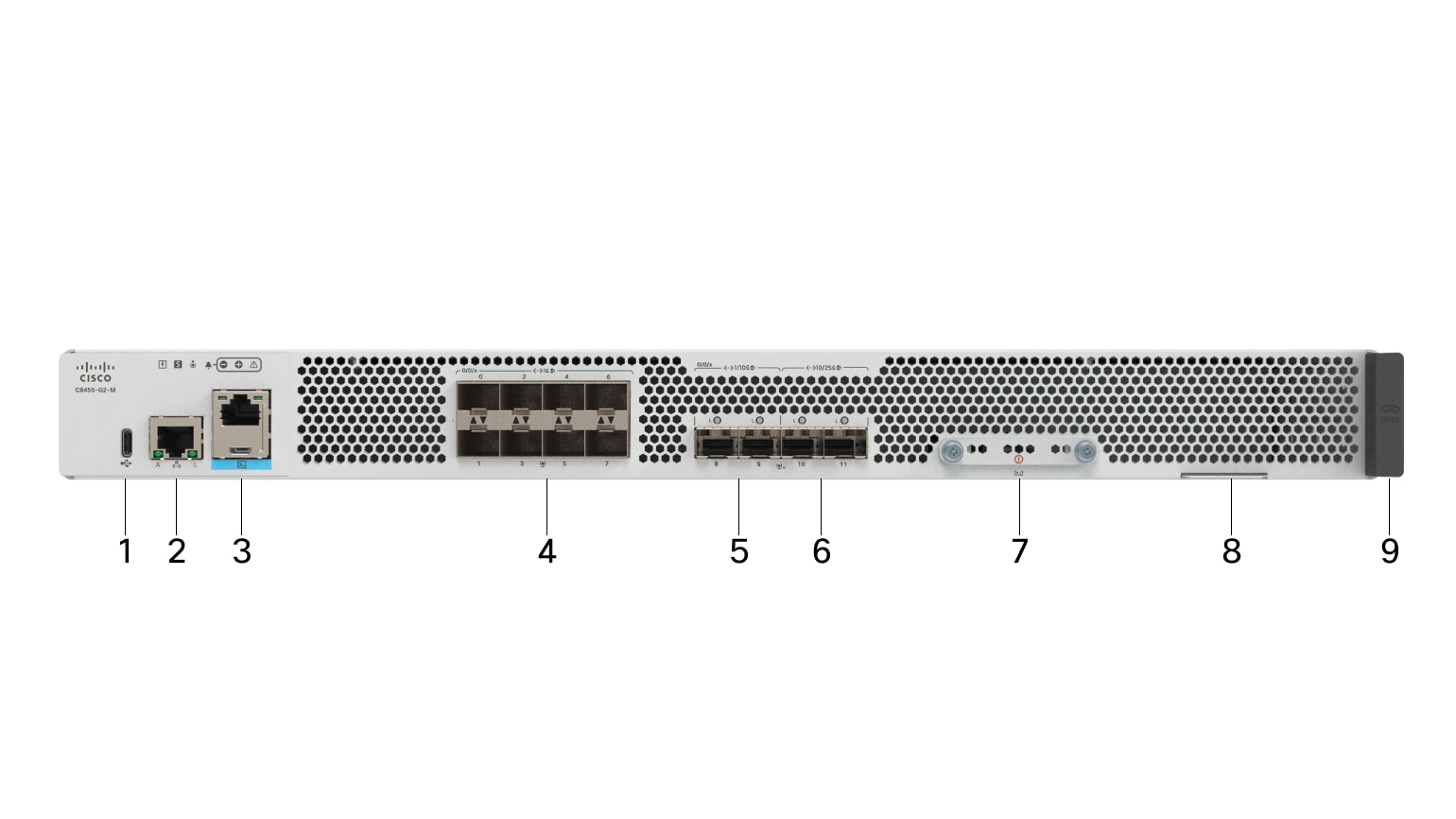

Figure 1: Front view of a Cisco C8455-G2 Secure Router

Table 1. Front panel of Cisco C8455-G2 Secure Router

Label	Description
1	USB 3.0 Type C Storage
2	Management RJ45 Port
3	Console RJ45 / Micro-USB Port
4	8 x 1G SFP Ports
5	2 x 1/10G SFP+ Ports
6	2 x 10/25G SFP28 Ports
7	M.2 Storage Slot
8	Label Tray
9	RFID

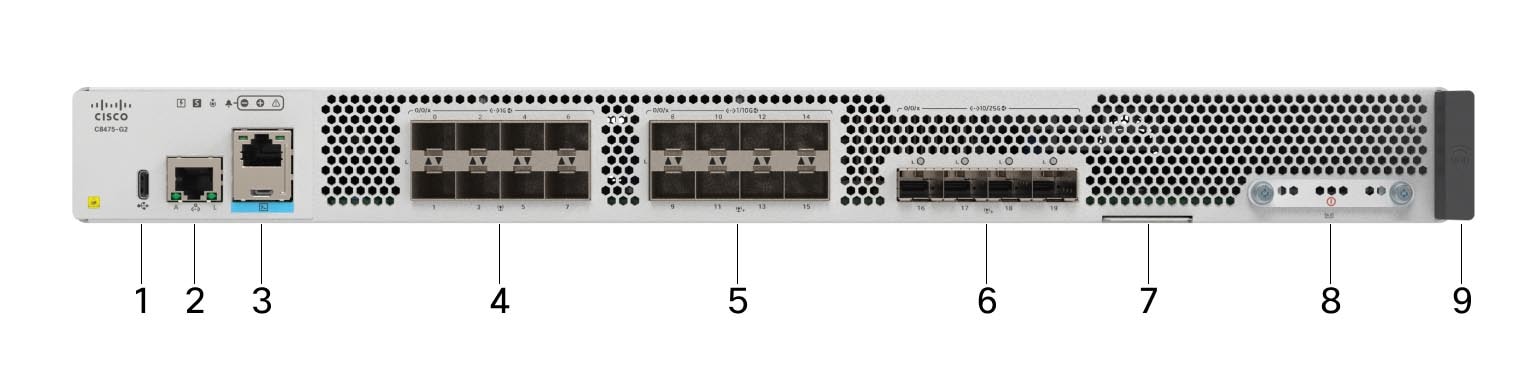

Figure 2: Front view of a Cisco C8475-G2 Secure Router

Table 2. Front panel of Cisco C8475-G2 Secure Router

Label	Description
1	USB 3.0 Type C Storage
2	Management RJ45 Port
3	Console RJ45 / Micro-USB Port
4	8 x 1G SFP Ports
5	8 x 1/10G SFP+ Ports
6	4 x 10/25G SFP28 Ports
7	Label Tray
8	M.2 Storage Slot
9	RFID

Table 3. Technical specifications

	C8455-G2	C8475-G2
Interfaces and Slots
WAN Ports	8x 1 GE (SFP) 2x 1/10 GE (SFP+) 2x 10/25 GE (SFP28)	8x 1 GE (SFP) 8x 1/10 GE (SFP+) 4x 10/25 GE (SFP28)
Management Port	1x RJ45 OOB Management 1x RJ45 / 1x Micro-USB	1x RJ45 OOB Management 1x RJ45 / 1x Micro-USB
Memory and Storage
DRAM	32 GB (default)	32 GB (default) 64 GB
Storage	64 GB (default) 600 GB 2 TB	64 GB (default) 600 GB 2 TB
Power Supply	250W AC 400W DC 400W HVDC	400W AC 400W DC 400W HVDC
Throughput
Forwarding (512B)	Up to 67 Gbps	Up to 91 Gbps
IPsec (512B)	Up to 31 Gbps	Up to 45 Gbps
SD-WAN* (512B)	Up to 15.5 Gbps	Up to 21.7 Gbps
Security (EMIX)	Up to 9.5 Gbps	Up to 10.9 Gbps
Scale
IPv4/IPv6 routes	5.8M	5.8M
IPsec tunnels	3,500	3,500

*SD-WAN feature combination: IPsec + QoS + Deep Packet Inspection + Flexible NetFlow

Table 4. Physical specifications

	C8455-G2	C8475-G2
Dimensions (H x W x D)	1.73 in x 17.50 in x 12 in	1.73 in x 17.50 in x 16.25 in
Rack Units (RU)	1 RU	1 RU
Chassis weight with 2x AC power supplies and fan tray	12.5 lbs	15.5 lbs
Operating temperature	32° to 104°F	32° to 104°F
Storage temperature	-40° to 150°F	-40° to 150°F
Relative humidity (ambient, non-condensing)	Operating: 10 to 85% Storage: 5 to 95%	Operating: 10 to 85% Storage: 5 to 95%
NEBS criteria levels	GR-1089 and GR-63	GR-1089 and GR-63
Altitude	-500 to 10,000 feet	-500 to 10,000 feet

Software management

The minimum Cisco IOS XE release versions and Meraki Dashboard for the Cisco 8400 Series Secure Routers are listed below:

	Device OS	Cisco Catalyst SD-WAN Manager
Cisco C8455-G2	Starting IOS XE 17.15.3	Starting SD-WAN Release 20.15.3
Cisco C8475-G2	Starting IOS XE 17.15.3	Starting SD-WAN Release 20.15.3

	Device OS	Management Dashboard
Cisco 8455-G2-MX	MX 19.2	Cisco Meraki dashboard

Ordering information

For a detailed overview of the ordering process, please visit the

Cisco 8000 Series Secure Routers Ordering Guide.

Warranty

Cisco 8400 Series Secure Routers come standard with a Cisco Limited 2-Year Return To Factory Hardware Warranty. For more information, refer to the

Cisco 8000 Series Secure Routers Ordering Guide.

Sustainability profile

Cisco is embedding sustainability into the product lifecycle—from manufacturing to end of use. Designed with consideration for Cisco’s

Circular Design Principles

, our products feature both individual and portfolio-wide programs and innovations, including those that address efficient architecture design, power consumption, energy management, packaging sustainability, and takeback. These elements are pivotal in reducing operational costs and advancing net-zero greenhouse gas (GHG) emissions targets, and other sustainability-related ambitions.

Information about Cisco’s environmental, social, and governance (ESG) initiatives and performance is available in

Cisco’s Purpose Reporting Hub.

Table 5. Sustainability references

Sustainability topic	Description
Energy Management	Energy Management dashboard	The Energy Management dashboard on the Catalyst SD-WAN Manager offers comprehensive energy management capabilities, allowing users to monitor energy usage, energy mix, costs, and greenhouse gas in real time. Energy Management
Environmental monitoring configuration	The environmental monitoring chapter in the System Management Configuration Guide provides guidelines for configuring monitoring of environmental conditions of chassis components
Ecolabels	ENERGY STAR®	Cisco 8400 Series Secure Routers are ENERGY STAR certified and meet energy-efficiency specifications set by the U.S. Environmental Protection Agency (EPA), helping customers save energy and money while helping to protect the environment, improve air quality, and protect public health.
80 PLUS Platinum/ Titanium Certified Power Supply Units	Cisco 8400 Series Secure Routers support high-efficiency power supply units. 80 PLUS Platinum Certified PSUs offer up to 94% efficiency at 50% load and titanium PSUs reaching up to 96% efficiency at 50% load at 230V input.
Materials, modularity, and reuse	Hardware standardization and modularity	Cisco 8400 Series Secure Routers use standard subassemblies and common components across products to streamline production and enhance repairability and upgradability.
Simplified architecture	Cisco 8400 Series Secure Routers offer a simplified architecture by consolidating multiple discreet ASIC/NPU components into a central system-on-chip (SoC) architecture, providing multiple discrete functions in a more integrated design.
Powder-coat finish	Cisco 8400 Series Secure Routers use a powder-coating finish instead of oil-based wet paint. In comparison, a powder-coating finish reduces the amount of harmful solvents used and volatile organic compounds (VOCs) emitted during the painting process.
Bezel-free design	Cisco 8400 Series Secure Routers use a bezel-free design reducing plastic usage.
Cisco Takeback and Reuse	This program allows customers to return used equipment for responsible recycling and reuse. Takeback and Reuse Program
Cisco Refresh	This program offers certified remanufactured products, providing cost-effective alternatives to new equipment. Cisco Refresh
Packaging
Foam reduction	Cisco 8000 Series Secure Routers are packaged with corrugated and fiber flute materials, containing minimum 25% post-consumer recycled content. Circular economy and packaging sustainability
Accessory opt-in	Accessory opt-in allows customers to select whether to include the accessory kit. Not including the kit results in using fewer materials and reducing waste. The default is now to not include the kit unless it is required. Cisco 8400 Series Secure Routers Ordering Guide
Regulatory Compliance	Environmental compliance	Information regarding Cisco compliance with applicable environmental laws and regulations is available at the Environmental Compliance section of Cisco’s Purpose Reporting Hub. Enviromental compliance
Product Approvals Status (PAS)	Information regarding the certification status for given Cisco products in certain countries is available at Cisco’s self-service PAS database. PAS database
Product-related materials compliance	This page addresses Cisco’s position regarding relevant product-related materials legislation, such as Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH). RoHS and REACH
Waste Electrical and Electronic Equipment (WEEE), battery, and packaging compliance	This page discusses Cisco’s position regarding relevant product-related legislation on recycling, battery, and packaging. WEEE, battery and packaging
Cisco packaging materials and codes	This table provides packaging material identification for packaging used for Cisco products. Packagin materials and codes
General	Sustainability inquiries	For ESG or CSR inquiries, please contact your Cisco account team.
Cisco policies, positions, and guides	Links to select Cisco’s Environmental Sustainability policies, positions, and guides are provided in the “Policies, positions, and guides” section of Cisco’s Purpose Reporting Hub. Policies, positions, and guides
Cisco Green Pay	This page provides an overview of Cisco Green Pay, a financing program aimed at promoting more sustainable technology adoption by providing flexible payment options. Green Pay

Sustainability topic

Description

Energy Management

Energy

Management

dashboard

The Energy Management dashboard on the Catalyst SD-WAN Manager offers comprehensive energy management capabilities, allowing users to monitor energy usage, energy mix, costs, and greenhouse gas in real time.

Energy Management

Environmental

monitoring

configuration

The environmental monitoring chapter in the System Management Configuration Guide provides guidelines for configuring monitoring of environmental conditions of chassis components

Ecolabels

ENERGY STAR®

Cisco 8400 Series Secure Routers are ENERGY STAR certified and meet energy-efficiency specifications set by the U.S. Environmental Protection Agency (EPA), helping customers save energy and money while helping to protect the environment, improve air quality, and protect public health.

80 PLUS Platinum/ Titanium Certified Power Supply Units

Cisco 8400 Series Secure Routers support high-efficiency power supply units. 80 PLUS Platinum Certified PSUs offer up to 94% efficiency at 50% load and titanium PSUs reaching up to 96% efficiency at 50% load at 230V input.

Materials,

modularity,

and reuse

Hardware

standardization and

modularity

Cisco 8400 Series Secure Routers use standard subassemblies and common components across products to streamline production and enhance repairability and upgradability.

Simplified

architecture

Cisco 8400 Series Secure Routers offer a simplified architecture by consolidating multiple discreet ASIC/NPU components into a central system-on-chip (SoC) architecture, providing multiple discrete functions in a more integrated design.

Powder-coat finish

Cisco 8400 Series Secure Routers use a powder-coating finish instead of oil-based wet paint. In comparison, a powder-coating finish reduces the amount of harmful solvents used and volatile organic compounds (VOCs) emitted during the painting process.

Bezel-free design

Cisco 8400 Series Secure Routers use a bezel-free design reducing plastic usage.

Cisco Takeback

and Reuse

This program allows customers to return used equipment for responsible recycling and reuse.

Takeback and Reuse Program

Cisco Refresh

This program offers certified remanufactured products, providing cost-effective alternatives to new equipment.

Cisco Refresh

Packaging

Foam reduction

Cisco 8000 Series Secure Routers are packaged with corrugated and fiber flute materials, containing minimum 25% post-consumer recycled content.

Circular economy and packaging sustainability

Accessory opt-in

Accessory opt-in allows customers to select whether to include the accessory kit. Not including the kit results in using fewer materials and reducing waste. The default is now to not include the kit unless it is required.

Cisco 8400 Series Secure Routers Ordering Guide

Regulatory Compliance

Environmental

compliance

Information regarding Cisco compliance with applicable environmental laws and regulations is available at the Environmental Compliance section of Cisco’s Purpose Reporting Hub.

Enviromental compliance

Product Approvals

Status (PAS)

Information regarding the certification status for given Cisco products in certain countries is available at Cisco’s self-service PAS database.

PAS database

Product-related

materials

compliance

This page addresses Cisco’s position regarding relevant product-related materials legislation, such as Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH).

RoHS and REACH

Waste Electrical

and Electronic

Equipment

(WEEE), battery,

and packaging

compliance

This page discusses Cisco’s position regarding relevant product-related legislation on recycling, battery, and packaging.

WEEE, battery and packaging

Cisco packaging

materials and

codes

This table provides packaging material identification for packaging used for Cisco products.

Packagin materials and codes

General

Sustainability

inquiries

For ESG or CSR inquiries, please contact your Cisco account team.

Cisco policies,

positions, and

guides

Links to select Cisco’s Environmental Sustainability policies, positions, and guides are provided in the “Policies, positions, and guides” section of Cisco’s Purpose Reporting Hub.

Policies, positions, and guides

Cisco Green Pay

This page provides an overview of Cisco Green Pay, a financing program aimed at promoting more sustainable technology adoption by providing flexible payment options.

Green Pay

Appendix

Safety and compliance

Chassis

The section below lists the safety and compliance information for the Cisco 8400 Series Secure Routers chassis.

Safety and certifications	EMC and EMI compliance
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950-1 GB4943	47 CFR Part 15 Class A ICES 003 Class A AS/NZS CISPR 32 Class A CISPR 22/CISPR 32 Class A EN55022/EN55032 Class A VCCI Class A KN32 Class A IEC/EN 61000-3-2: Power Line Harmonics IEC/EN 61000-3-3: Voltage Fluctuations and Flicker

Document history

New or revised topic	Described in	Date
Document created	Datasheet	June 10, 2025
