Cisco 8200 Series Secure Routers Data Sheet

A Part of the Cisco 8000 Series Secure Routers Family.

Last updated: December 5, 2025.

Download data sheet (PDF)

Watch SD-WAN demo

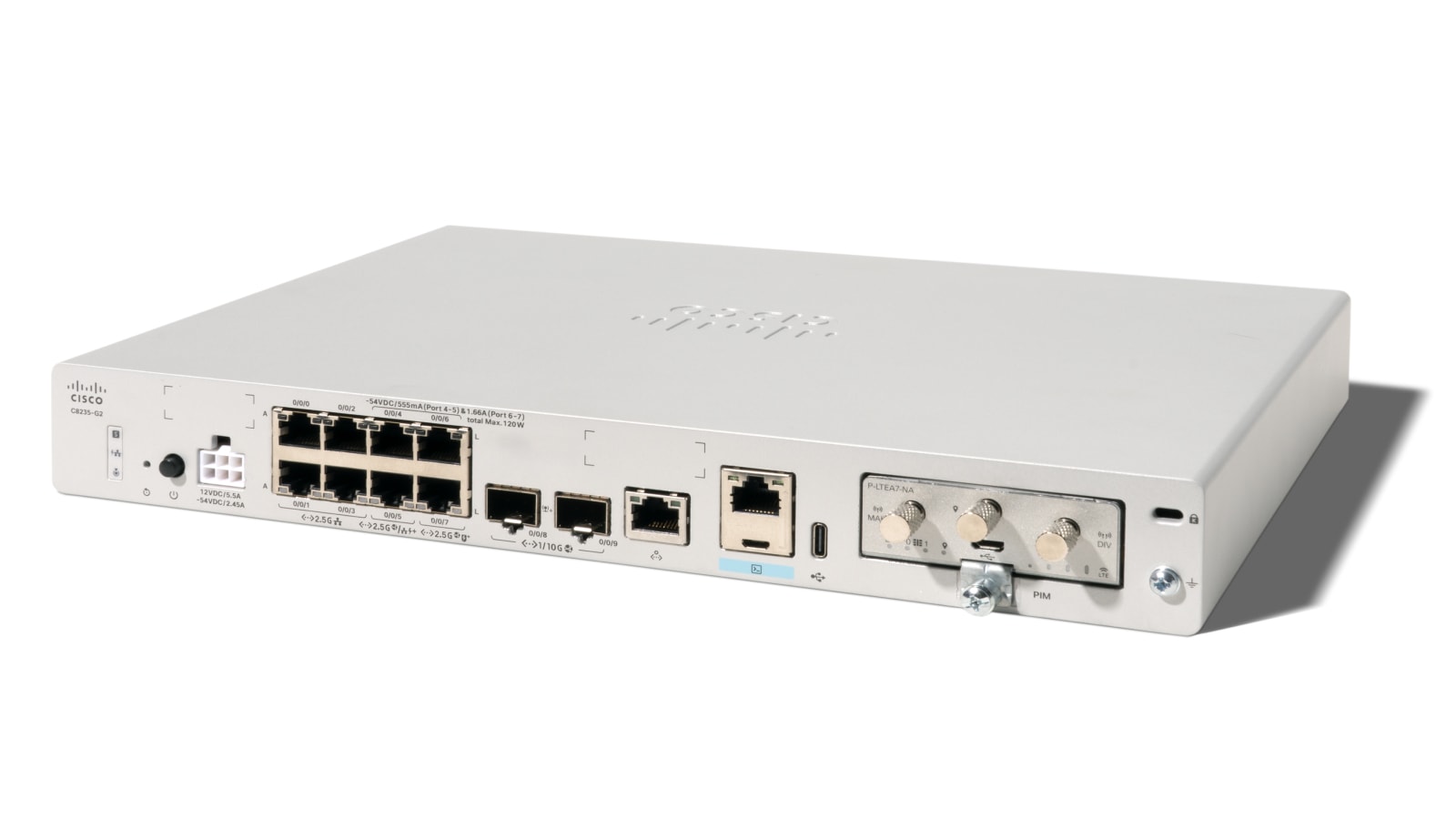

Cisco 8200 Series Secure Router

Request Quote

Overview

Cisco 8200 Series Secure Routers deliver secure networking simplified. Powered by the all-new secure networking processor and the unified Cisco secure networking platform, Cisco 8200 Series Secure Routers deliver robust, platform-level security, advanced performance engineering via routing and SD-WAN, and on-premises, infrastructure-as-code, or cloud management flexibility that enables businesses to seamlessly scale and grow. Each class of secure routers is designed to deliver risk reduction, enhanced reliability, and future readiness.

Platform highlights

Designed for medium branch deployments, Cisco 8200 Series Secure Routers combine robust security, advanced performance engineering, and flexible management options. These routers offer seamless connectivity, dynamic path selection, and unified security enforcement, ensuring resilient operations and simplified IT overhead as your network grows. With integrated security and support for high-speed 10G interfaces, these platforms deliver scalable and reliable performance for modern WAN edge deployments. Whether used for traditional routing or SDWAN applications, the Cisco 8200 Series supports AI-driven growth to meet digital branch demands

Key features

Hardware-accelerated security and networking

Models and specifications

Cisco 8200 Series Secure Routers offer both fixed and modular configurations to meet diverse networking needs and include four models:

Cisco C8235-E-G2 ,C8231-E-G2, C8235-G2 and C8231-G2.

Cisco C8235-E-G2 and C8231-E-G2

are 1 RU modular platforms with 1 NIM slot plus 2 x 10 Gbps SFP/SFP+, and 2 x 2.5G Multigigabit RJ-45 ports.

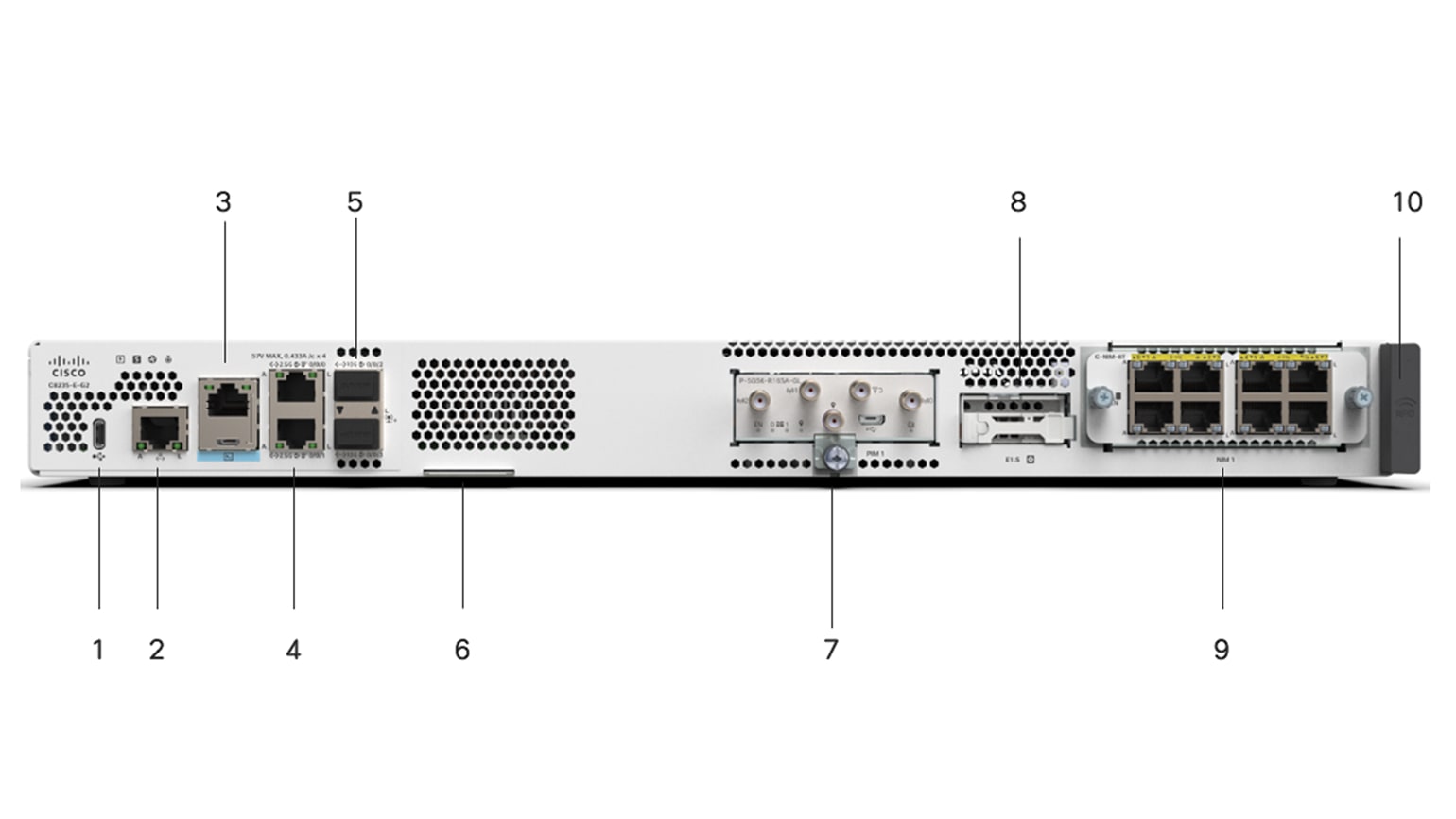

Figure 1. Front View of a Cisco C8235-E-G2 Secure Router

Front View of a Cisco C8235-G2 Secure Router

Table 1. Front Panel of Cisco C8235-E-G2 Secure Router

Label	Description
1	USB 3.0 Type C Storage
2	Management RJ45 port
3	Console RJ45 /Micro-USB port
4	2x 2.5G Multigigabit RJ45 ports
5	2x 10G SFP/SFP+ ports
6	Label tray
7	PIM Slot
8	E1.S storage slot
9	NIM slot
10	RFID

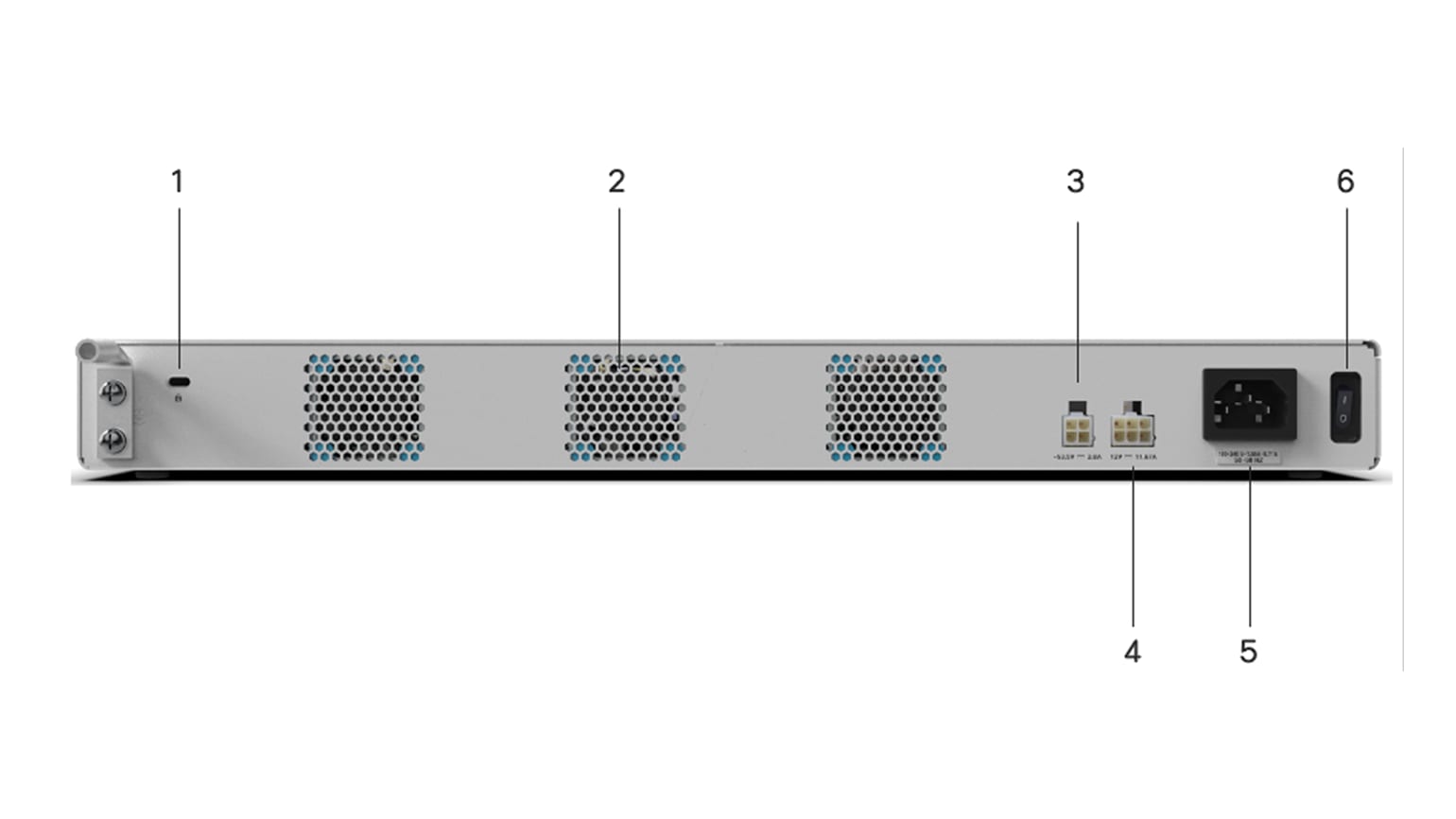

Figure 2. Rear View of a Cisco C8235-E-G2 Secure Router

Front View of a Cisco C8231-G2 Secure Router

Table 2. Rear Panel of a Cisco C8235-E-G2 Secure Router

Label	Description
1	Kensington lock, ground screw
2	Fan
3	PoE adapter input
4	12V DC – secondary PSU input
5	AC – primary power socket
6	Power switch

Cisco C8235-G2

is a fixed platform and provides 2 x 10 Gbps SFP/SFP+ and 8 x 2.5G Multigigabit RJ-45 ports.

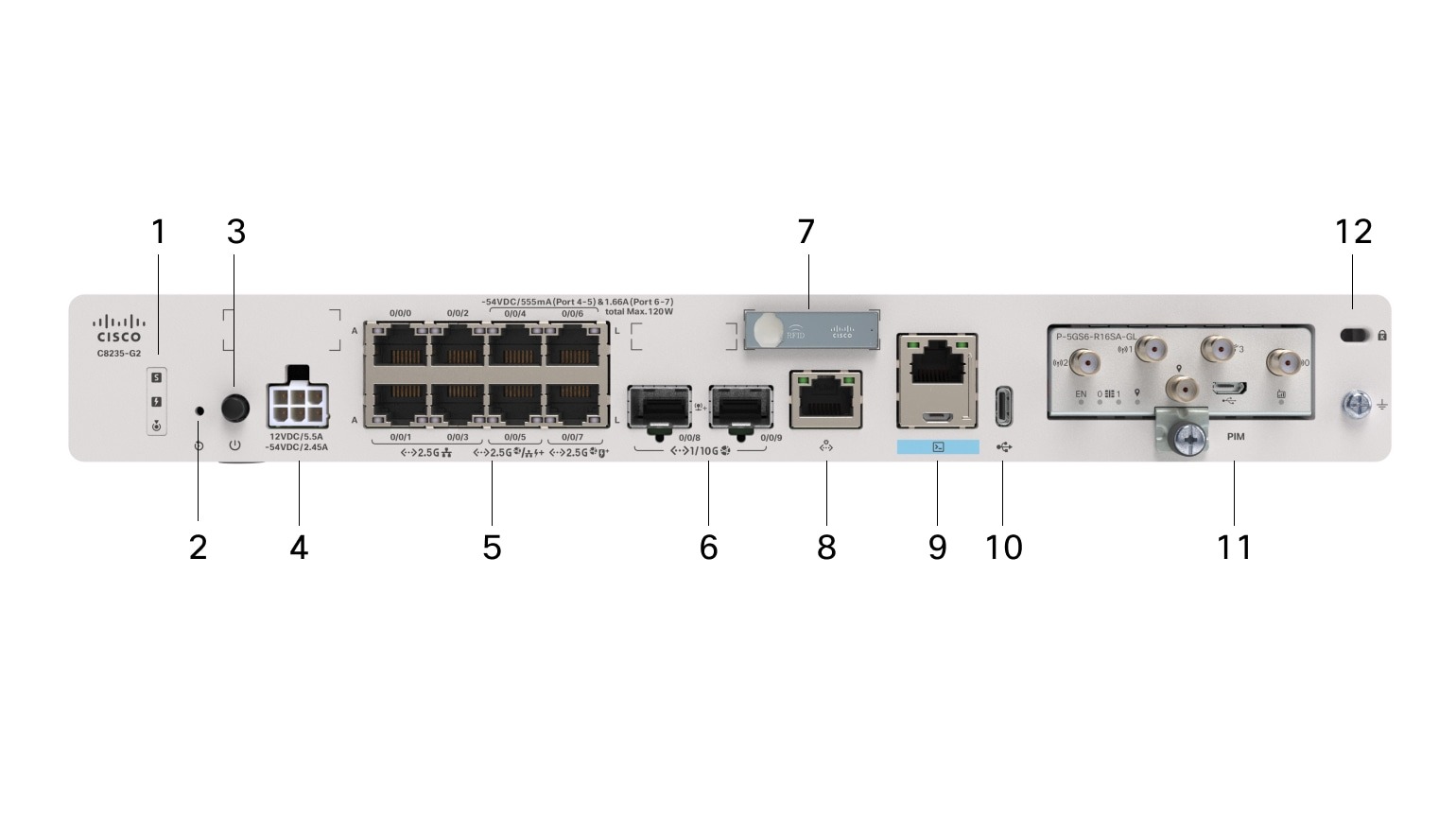

Figure 3. Front View of a Cisco C8235-G2 Secure Router

Table 3. Front Panel of Cisco C8235-G2 Secure Router

Label	Description
1	Status LEDs, blue beacon LED
2	Reset button
3	Power button
4	Power supply input (AC/AC + PoE)
5	8x 2.5G Multigigabit RJ-45 ports
6	2x 10G SFP/SFP+ ports
7	RFID
8	Management RJ-45 port
9	Console RJ-45 port/Micro-USB cConsole port
10	USB 3.0 Type C Storage
11	PIM slot
12	Kensington lock, ground screw

Cisco C8231-G2

is a fixed platform and provides 2 x 10 Gbps SFP/SFP+, 4 x 2.5G Multigigabit RJ-45 and 4 x 1G RJ-45 ports.

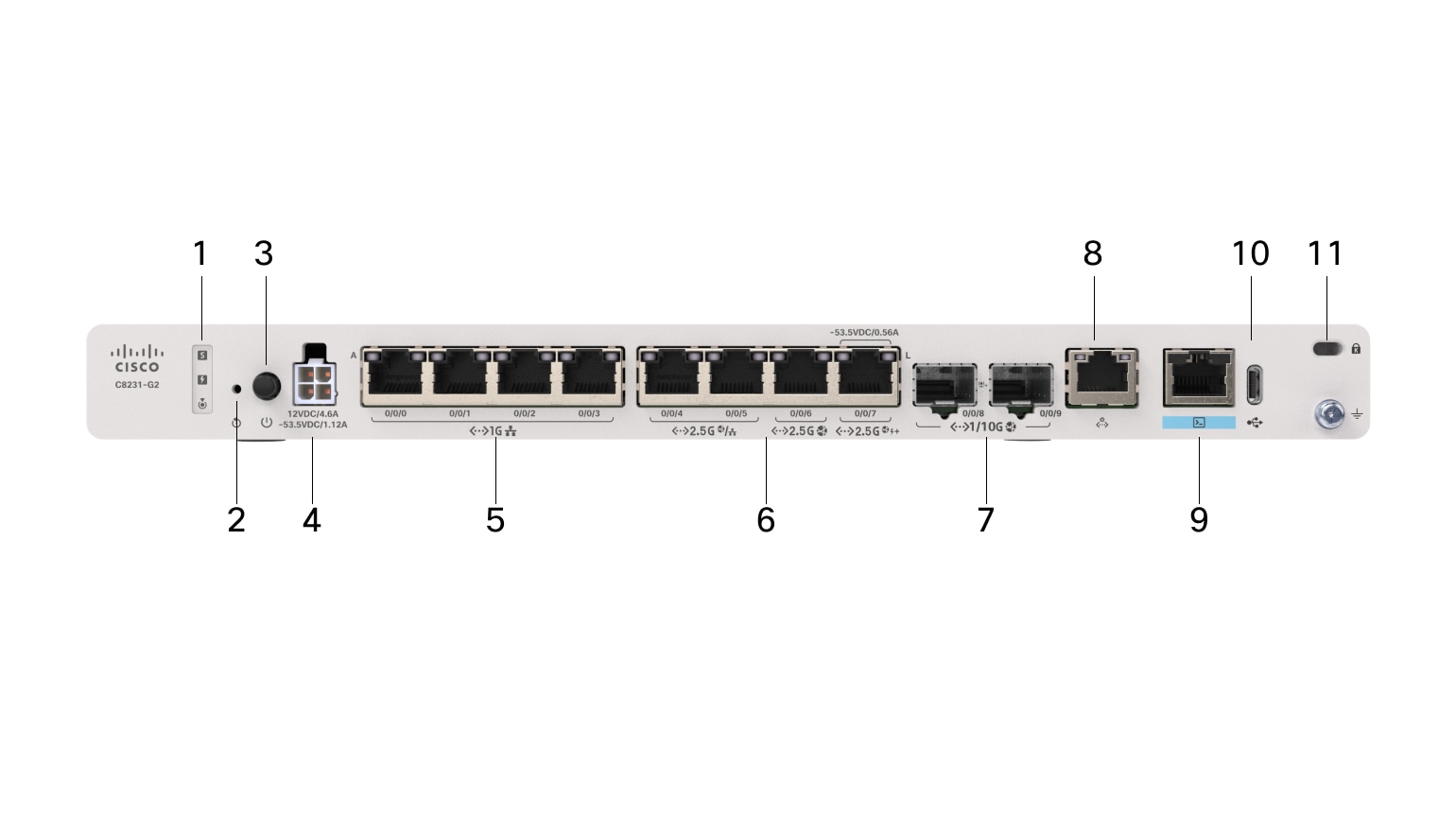

Figure 4. Front View of a Cisco C8231-G2 Secure Router

Table 4. Front Panel of a Cisco C8231-G2 Secure Router

Label	Description
1	Status LEDs
2	Reset button
3	Power button
4	Power supply input (AC/AC + PoE)
5	4x 1G RJ-45 ports
6	4x 2.5G Multigigabit RJ-45 ports
7	2x 10G SFP/SFP+ ports
8	Management RJ-45 port
9	Console RJ-45 port
10	USB 3.0 Type C Storage
11	Kensington lock, ground screw

Table 5. Technical specifications

	Cisco C8235-E-G2 and Cisco C8231-E-G2	Cisco C8235-G2	Cisco C8231-G2
Interfaces and slots
WAN Ports	2 x 10G SFP/SFP+ 2 x 2.5G mGig RJ-45 (2x UPoE+)	2 x 10G SFP/SFP+ 2 x 2.5G mGig RJ-45 (2x UPoE+)	2 x 10G SFP/SFP+ 2 x 2.5G mGig RJ-45 (1x PoE+)
Flex Ports	–	2 x 2.5G mGig RJ-45 (2x PoE+)	2 x 2.5G mGig RJ-45
LAN Ports	–	4 x 2.5G mGig RJ-45	4 x 1G RJ-45
Expansion Slots	1 x NIM	–	–
Cellular Slot	1 x PIM	1 x PIM	–
Management Port	1 x RJ-45 OOB Mgmt 1 x RJ-45/1x micro-USB console	1 x RJ-45 OOB Mgmt 1 x RJ-45/1x micro-USB console	1 x RJ-45 OOB Mgmt 1 x RJ-45 console
Memory and Storage
DRAM	16 GB (for C8235-E-G2) 8 GB (for C8231-E-G2)	16 GB	8 GB
Storage	16 GB Upgradeable to 600 GB	16 GB	16 GB
Power Supply (default)	140 W AC (internal default)	66 W AC (default – external adapter)	66 W AC (default – external adapter)
Power Supply (Upgrade Options)	150 W AC for PoE (external adapter) PoE budget – 120 W Secondary PSU option – external adapter 150 W AC-DC 150 W DC-DC	230 W AC for PoE (external adapter) PoE budget – 120 W	115 W AC for PoE (external adapter) PoE budget – 30 W
Typical Power Consumption	34.20W	27.11 W	26.70 W

Table 6. Throughput and Scale

	Cisco C8235-E-G2 and Cisco C8231-E-G2	Cisco C8235-G2	Cisco C8231-G2
Throughput
Forwarding (512B)	19 Gbps	19 Gbps	19 Gbps
IPsec (512B)	5 Gbps	5 Gbps	5 Gbps
SD-WAN* (512B)	4 Gbps	4 Gbps	4 Gbps
Threat protection* (EMIX)	2.4 Gbps (C8235-E-G2) 1 Gbps (C8231-E-G2)	2.4 Gbps	1 Gbps
Scale
IPv4/IPv6 routes	1.5M	1.5M	1.5M
IPsec tunnels	700	700	700
IPv4 ACLs	3000	3000	3000
IPv4 ACEs	15K	15K	15K
NAT Sessions	1.5M	1.5M	1.5M
VRFs	4000	4000	4000

*SD-WAN feature combination: IPsec + QoS + Deep Packet Inspection + Flexible NetFlow

*Threat Protection: 100% DIA-NAT + NGFW + IPS + URLF + AMP

Table 7. Physical specifications

Description	Cisco C8235-E-G2 and Cisco C8231-E-G2	Cisco C8235-G2	Cisco C8231-G2
Dimensions (H x W x D)	1.73 in x 17.25 in x 11.81 in	1.65 in x 8.9 in x 12.7 in 2.835 in x 12 in x 17.56 in (with rackmount tray holding power supply)	1.14 in x 8.1 in x 12.23 in 2.835 in x 12 in x 17.56 in (with rackmount tray holding power supply)
Rack Units (RU)	1 RU	Desktop	Desktop
Chassis weight	8.36lbs	7 lbs	5 lbs
Input voltage	AC: 85 to 264 VAC DC: -40 to 72V; 48V nominal	AC: 85 to 264 VAC	AC: 85 to 264 VAC
Operating temperature	0 to 40°C, up to 10,000 feet 0 to 45°C, up to 6000 feet For NEBS, -5 to 55°C, up to 6000 feet (additional 3rd fan tray required)	0 to 40°C, at sea level	0 to 45°C, at sea level
Storage temperature	-40 to 70°C	-40 to 70°C	-40 to 70°C
Relative humidity (noncondensing)	Operating: 5 to 85% Non-operating and storage: 5 to 95%

Modules

Table 8. Modules

Product number	Description
WAN modules
C-NIM-WAN-2X	2-port 1/10 Gbps SFP/SFP+ WAN Module, NIM with WAN MACsec
C-NIM-WAN-4S	4-port 1 Gbps SFP WAN Module, NIM with WAN MACsec
LAN modules
C-NIM-4X	4-port 1/10 Gbps SFP/SFP+ switch NIM, LAN/WAN MACsec and optional L3
C-NIM-8T	8-port 100 Mbps/1 Gbps switch NIM, LAN/WAN MACsec and optional L3
C-NIM-8M	8-port 100 Mbps/1/2.5 Gbps switch NIM, UPOE+, LAN/WAN MACsec and optional L3
Serial WAN interface
NIM-1T	1-port serial high-speed WAN interface card
NIM-2T	2-port serial high-speed WAN interface card
NIM-4T	4-port serial high-speed WAN interface card
Async WAN interface
NIM-16A	16-port Asynchronous Module
NIM-24A	24-port Asynchronous Module
Cellular modules
P-5GS6-R16SA-GL*	5G Sub-6 GHz Pluggable – 5G SA Global
P-LTEA7-NA*	CAT7 LTE Advanced Pluggable – North America
P-LTEA7-EAL*	CAT7 LTE Advanced Pluggable – EMEA, APAC, and LATAM
P-LTEA7-JP*	CAT7 LTE Advanced Pluggable – Japan

*Only Cellular Modules are supported on C8235-G2, while C8231-G2 do not support any modules

Software management

The minimum Cisco IOS XE release versions for the Cisco 8200 Series Secure Routers are listed below:

	Device OS	Cisco Catalyst SD-WAN Manager
Cisco 8200 Series Secure Routers	Starting IOS XE 17.18.1	Starting SD-WAN Release 20.18.1

Device OS

Cisco Catalyst SD-WAN Manager

Cisco 8200 Series

Secure Routers

Starting IOS XE 17.18.1

Starting SD-WAN Release 20.18.1

Ordering information

For a detailed overview of the ordering process, please visit the

Cisco 8000 Series Secure Routers Ordering Guide.

Warranty

Cisco 8200 Series Secure Routers come standard with a Cisco Limited 2-Year Return To Factory Hardware Warranty. For more information, refer to:

https://www.cisco.com/c/en/us/products/warranties/warr-2yr-ltd-hw.html

Sustainability profile

Cisco is embedding sustainability into the product lifecycle—from manufacturing to end of use. Designed with consideration for Cisco’s Circular Design Principles, our products feature both individual and portfolio-wide programs and innovations, including those that address efficient architecture design, power consumption, energy management, packaging sustainability, and takeback. These elements are pivotal in reducing operational costs and advancing net-zero greenhouse gas (GHG) emissions targets, and other sustainability-related ambitions.

Information about Cisco’s environmental, social, and governance (ESG) initiatives and performance is available in Cisco’s Purpose Reporting Hub.

Table 9. Sustainability references

Sustainability topic		Description
Power	Power management configuration	The power management chapter in the System Management Configuration Guide provides detailed information on power management features and configurations available for the Cisco 8200 Series Secure Routers. The features discussed include power-supply modes, and power-budgeting considerations.
	Auto-off ports without Small Form-factor Pluggable (SFP)	Once enabled, the system checks for the presence of SFPs in Fiber ports on a regular basis and turns on SerDes when SFP is detected. If no SFP is detected, the system will keep SerDes off to save energy.
	Auto-off Port LEDs	Once enabled, port light emitting diodes (LEDs) will stay depowered saving energy until a link event is triggered or manually enabled by Command Line Interface or Mode button.
Energy management	Energy Management dashboard	The Energy Management dashboard on the Catalyst SD-WAN Manager offers comprehensive energy management capabilities, allowing users to monitor energy usage, energy mix, costs, and greenhouse gas emissions in real time Energy Management
Energy management	Environmental monitoring configuration	The environmental monitoring chapter in the System Management Configuration Guide provides guidelines for configuring monitoring of environmental conditions of chassis components.
Materials, modularity, and reuse	Hardware standardization and modularity	Cisco 8200 Series Secure Routers use standard subassemblies and common components across products to streamline production and enhance repairability and upgradability.
	Simplified architecture	Cisco 8200 Series Secure Routers offer a simplified architecture by consolidating multiple discreet ASIC/NPU components into a central system-on-chip (SoC) architecture, providing multiple discrete functions in a more integrated design.
	Powder-coat finish	Cisco 8200 Series Secure Routers use a powder-coating finish instead of oil-based wet paint. In comparison, a powder-coating finish reduces the amount of harmful solvents used and volatile organic compounds (VOCs) emitted during the painting process.
	Bezel-free design	Cisco 8200 Series Secure Routers use a bezel-free design reducing plastic usage.
	Cisco Takeback and Reuse	This program allows customers to return used equipment for responsible recycling and reuse. Takeback and Reuse Program
	Cisco Refresh	This program offers certified remanufactured products, providing cost-effective alternatives to new equipment. Cisco Refresh
	Foam reduction	Cisco 8000 Series Secure Routers are packaged with corrugated and fiber flute materials, containing minimum 25% post-consumer recycled content. Circular economy and packaging sustainability
	Accessory opt-in	Accessory opt-in allows customers to select whether to include the accessory kit. Not including the kit results in using fewer materials and reducing waste. The default is now to not include the kit unless it is required.
Regulatory compliance	Environmental compliance	Information regarding Cisco compliance with applicable environmental laws and regulations is available at the Environmental Compliance section of Cisco’s Purpose Reporting Hub. Environmental compliance
	Product Approvals Status (PAS)	Information regarding the certification status for given Cisco products in certain countries is available at Cisco’s self-service PAS database. PAS database
	Product-related materials compliance	This page addresses Cisco’s position regarding relevant product-related materials legislation, such as Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH). RoHS and REACH
	Waste Electrical and Electronic Equipment (WEEE), battery, and packaging compliance	This page discusses Cisco’s position regarding relevant product-related legislation on recycling, battery, and packaging. WEEE, battery and packaging
	Cisco packaging materials and codes	This table provides packaging material identification for packaging used for Cisco products. Packaging materials and codes
General	Sustainability inquiries	For ESG or CSR inquiries, please contact your Cisco account team.
	Cisco policies, positions, and guides	Links to select Cisco’s Environmental Sustainability policies, positions, and guides are provided in the “Policies, positions, and guides” section of Cisco’s Purpose Reporting Hub. Policies, positions, and guides
	Cisco Green Pay	This page provides an overview of Cisco Green Pay, a financing program aimed at promoting more sustainable technology adoption by providing flexible payment options. Green Pay

Appendix

Safety and compliance

Chassis

The section below lists the safety and compliance information for the Cisco 8200 Series Secure Routers chassis.

Safety and certifications	EMC and EMI compliance
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 62368-1 CAN/CSA-C22.2 No. 62368-1 EN 60950-1 IEC 60950-1 IEC 62368-1 EN 62368-1 AS/NZS 60950.1 AS/NZS 62368.1 IEC/EN 60825 Laser Safety FDA: Code of Federal Regulations Laser Safety	47 CFR Part 15 Class A ICES 003 Class A AS/NZS CISPR 32 Class A CISPR 32 Class A EN55032 Class A VCCI-CISPR 32 Class A CNS 13438 Class A KS32 Class A IEC/EN 61000-3-2: Power Line Harmonics IEC/EN 61000-3-3: Voltage Fluctuations and Flicker IEC/EN-61000-4-2: Electrostatic Discharge Immunity IEC/EN-61000-4-3: Radiated Immunity IEC/EN-61000-4-4: Electrical Fast Transient Immunity IEC/EN-61000-4-5: Surge AC, DC, and Signal Ports IEC/EN-61000-4-6: Immunity to Conducted Disturbances IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations KS C 9835 EN300 386: Telecommunications Network Equipment (EMC) EN55032: Multimedia Equipment (Emissions) EN55024: Information Technology Equipment (Immunity) EN55035: Multimedia Equipment (Immunity) EN61000-6-1: Generic Immunity Standard

Safety and certifications

EMC and EMI compliance

UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 62368-1
CAN/CSA-C22.2 No. 62368-1
EN 60950-1
IEC 60950-1
IEC 62368-1
EN 62368-1
AS/NZS 60950.1
AS/NZS 62368.1
IEC/EN 60825 Laser Safety
FDA: Code of Federal Regulations Laser Safety

47 CFR Part 15 Class A
ICES 003 Class A
AS/NZS CISPR 32 Class A
CISPR 32 Class A
EN55032 Class A
VCCI-CISPR 32 Class A
CNS 13438 Class A
KS32 Class A
IEC/EN 61000-3-2: Power Line Harmonics
IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
IEC/EN-61000-4-2: Electrostatic Discharge Immunity
IEC/EN-61000-4-3: Radiated Immunity
IEC/EN-61000-4-4: Electrical Fast Transient Immunity
IEC/EN-61000-4-5: Surge AC, DC, and Signal Ports
IEC/EN-61000-4-6: Immunity to Conducted Disturbances
IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity
IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
KS C 9835
EN300 386: Telecommunications Network Equipment (EMC)
EN55032: Multimedia Equipment (Emissions)
EN55024: Information Technology Equipment (Immunity)
EN55035: Multimedia Equipment (Immunity)
EN61000-6-1: Generic Immunity Standard

Document history

Document history	Described in	Date
Document created	Datasheet	June 10, 2025
Added new modular variant	Across Document	Nov 10, 2025
Added Scale Numbers and Removed unsupported Modules	Table #6 and Table #8	Dec 5, 2025

Described in

Date

Document created

Datasheet

June 10, 2025

Added new modular variant

Across Document

Nov 10, 2025

Added Scale Numbers and Removed

unsupported Modules

Table #6 and Table #8

Dec 5, 2025
